Beverage Bottle Recycling Machine

Beverage Bottle Recycling Machine Instruction:

It is reported that beverage bottle recycling machine implements innovative environmental garbage sorting robot which can complete the identification of various beverage bottles, recycling, compression, while giving participants paperless rebates or gift, promote waste resource recycling.
Plastic (Film/woven bag/fiber/rope) Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals contaminants efficiently. Moreover, the solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.
Beverage Bottle Recycling Machine-fangsheng
Beverage Bottle is a highly crystalline polymer in milky white or light yellow, with a smooth and shiny surface. PET has good properties of creep resistance, fatigue resistance, and abrasion resistance. It also has the best toughness among all the thermoplastics and little affection from the temperature.
As a kind of non-toxic plastic, PET is used as a raw material for making packaging such as bottles and containers to packaging a wide range of food products and consumer goods, such as soft drinks, alcoholic beverages, pharmaceutical products, detergents, cosmetics, and edible oils.

Beverage Bottle  Machine Video:

Beverage Bottle Machine Detail:

Beverage Bottle Recycling Machine-fangsheng

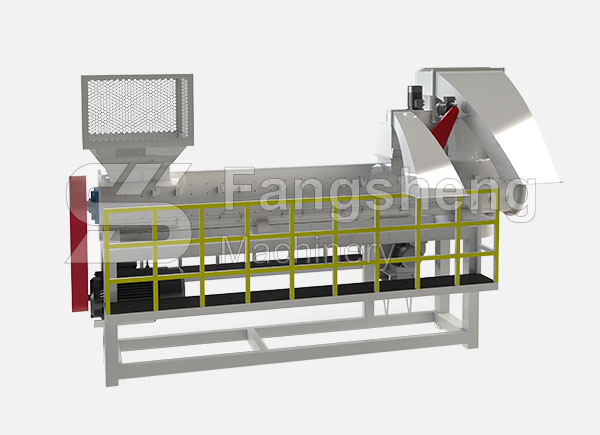

High-speed Friction Washer
Beverage Bottle Recycling Machine-fangsheng
Crusher Machine
Beverage Bottle Recycling Machine-fangsheng
Dewatering Machine
Beverage Bottle Recycling Machine-fangsheng
Steam washer
Beverage Bottle Recycling Machine-fangsheng
Label scfraping machine
Beverage Bottle Recycling Machine-fangsheng

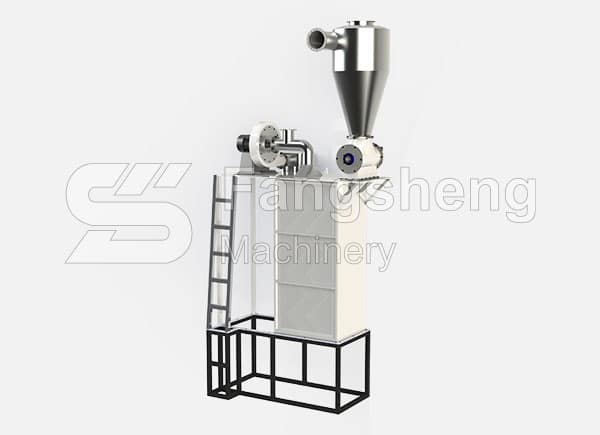

Label separator by air

Beverage Bottle Machine Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 3500*900*3000 According to customers standard
Label scraping machine 11 2600*1200*1800 0.6-1.0 3-5
Manual separating machine 2.2 6000*800*1200
Metal detectory 0.4 2200*1200*1500 3-5
Belt conveyer 2.2 3500*900*3000
Crusher 37 2200*2200*3000 0.6-1.0
Screw converor 3 2800*800*2600 3-5
High speed friction washer 30 3200*1400*2000 1-2 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 36 2800*800*2600 3-5
Steam washer 7.5 1800*1800*2700 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Dewatering machine 5.5 800*2200*2200 5
Drying system 11 3500*2200*2200 3-5
Label separater 4 800*1100*3800
Storage hopper 1500*1500*3800
Electric elements 2000*450*1780
