BOPP Film Granulating Equipment

BOPP Film Granulating Equipment Description:

The BOPP film granulating equipment is a model specially developed by our company for the extrusion and granulation of waste BOPP film materials. It integrates multiple functions such as raw material transportation, crushing, extrusion, and granulation. The production process saves the labor of repeated turnover and raw material transportation. The waste film produces hot pellets during the crushing process, which is conducive to compression and plasticization. The BOPP film granulating machine has high output, low energy consumption, low labor intensity of workers, and good recycling and granulation quality. BOPP film granulating machine is an ideal equipment for recycling and granulating waste films.

BOPP Film Granulating Equipment-fangsheng



BOPP Film Granulating Equipment Features:

1. The host is equipped with a fully automatic control cabinet and PLC operating system. Simple operation and stable performance.
2. The BOPP film granulating machine has low energy consumption, significant energy saving effect, high output, and electromechanical integration.
3. Pelletizing system: Both stretch strips and water ring can be used. If the extrusion die uses water ring cutting, the perfect appearance of the particles can be ensured.
4. According to the cleanliness of raw materials and actual production needs, you can choose single-stage (one extruder with one screen changer) or two-stage (two extruders with two screen changers for mother and baby)

BOPP Film Granulating Equipment Application:

BOPP Film Granulating Equipment-fangsheng

BOPP Film Granulating Machine Video:

BOPP Film Granulating Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

BOPP Film Granulating Machine Detail:

BOPP Film Granulating Equipment-fangsheng

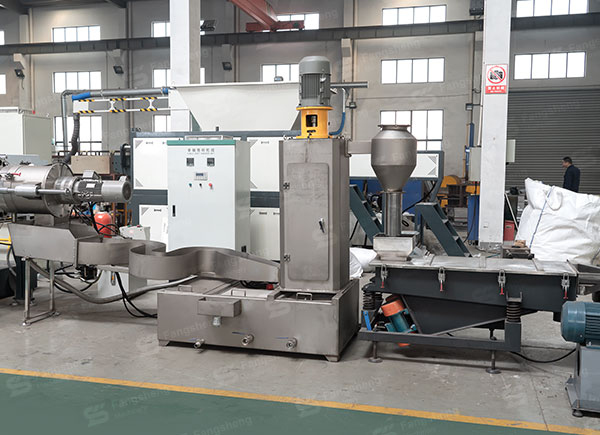

Detail 1
BOPP Film Granulating Equipment-fangsheng

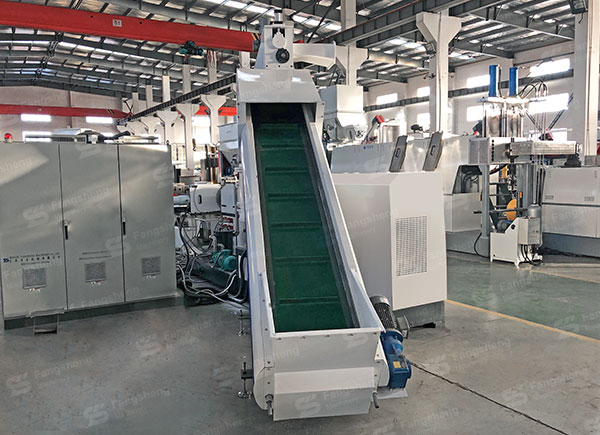

Detail 2
BOPP Film Granulating Equipment-fangsheng

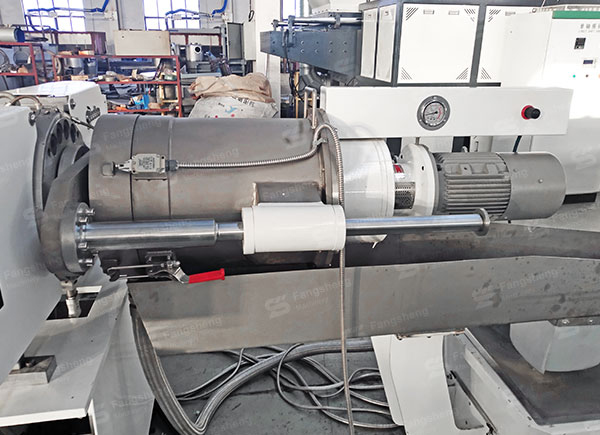

Detail 3
