BOPP Film Granulation Equipment

BOPP Film Granulation Equipment Description:

This BOPP film granulation equipment for PP film pelletizing recycling plant is mainly used for crushing, cleaning and drying of PP/BOPP/CPP recycled materials.The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality.

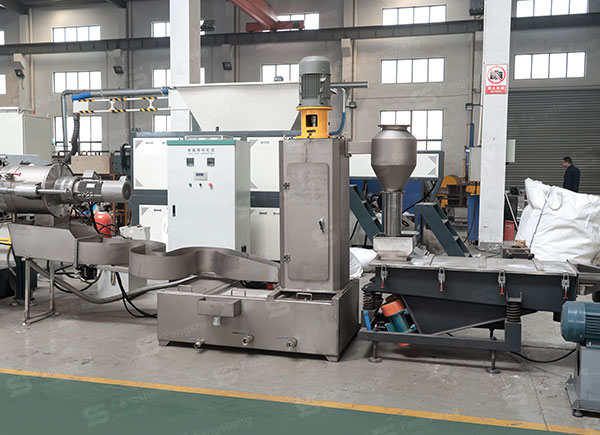

BOPP Film Granulation Equipment-fangsheng

BOPP Film Granulation Equipment Features:

1. Make full use of the high-pressure continuous friction heating system to automatically heat production, avoid continuous heating and save energy.
2. The BOPP film granulation machine adopts a split automatic distribution system to ensure the safe operation of the motor.
3. Dry or dry, dry, can be produced, wet or dry.
4. From raw material crushing, washing to automatic processing of particles.
5. The screw and cylinder are made of imported high-strength, high-quality carbon structural steel, which is durable.

BOPP Film Granulation Equipment Application:

BOPP Film Granulation Equipment-fangsheng

BOPP Film Granulation Equipment Video:

BOPP Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

BOPP Film Granulation Machine Detail:

BOPP Film Granulation Equipment-fangsheng
Detail 1
BOPP Film Granulation Equipment-fangsheng
Detail 2
BOPP Film Granulation Equipment-fangsheng
Detail 3
BOPP Film Granulation Equipment-fangsheng
Detail 4
BOPP Film Granulation Equipment-fangsheng
Detail 5
BOPP Film Granulation Equipment-fangsheng
Detail 6
