BOPP Film Pelletizer Line

BOPP Film Pelletizer Line Description:

The BOPP film pelletizer line is a model specially developed by our company for the extrusion and pelletization of waste BOPP film materials. This  BOPP film pelletizer unit integrates the transportation, crushing, extrusion and granulation of raw materials. The production process saves the labor of repeated turnover and transportation of raw materials. The waste film generates thermal pellets during the crushing process, which is conducive to compression and plasticization. The BOPP film pelletizer machine has a high output. Low energy consumption, low work intensity of workers, and good quality of recycling and granulation. The BOPP film pelletizer machine is an ideal equipment for recycling and granulating waste films.

BOPP Film Pelletizer Line-fangsheng



BOPP Film Pelletizer Line Features:

1. The entire BOPP film pelletizer machine has a high degree of automation and is a fully automatic assembly line. As long as someone adds waste plastic in the front and someone at the back receives the pelletized product, it can realize the direct transformation from waste plastic to pelletized product;
2. The screw and barrel of the pelletizing line are made of special materials, and the surface is nitrided and hardened, and the service life is super long;
3. After the pelletizing line is discharged, the pellets are cut directly by the water ring, dehydrated by the dehydrator, and the appropriate pellets are selected through the vibrating screen and sent to the storage bin by the fan.

BOPP Film Pelletizer Line Application:

BOPP Film Pelletizer Line-fangsheng

BOPP Film Pelletizer System Video:



BOPP Film Pelletizer System Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

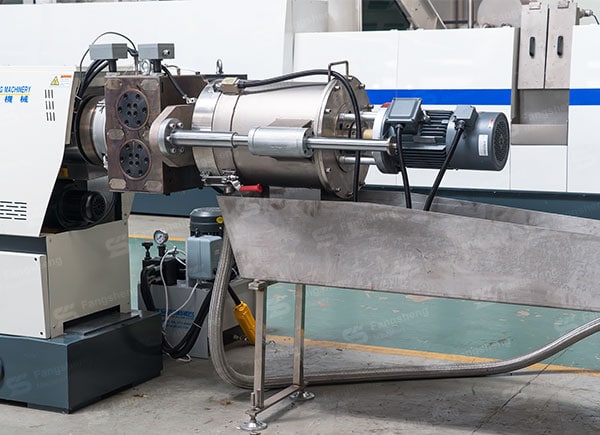

BOPP Film Pelletizer System Detail:

BOPP Film Pelletizer Line-fangsheng
Detail 1
BOPP Film Pelletizer Line-fangsheng
Detail 2
BOPP Film Pelletizer Line-fangsheng
Detail 3
BOPP Film Pelletizer Line-fangsheng
Detail 4
BOPP Film Pelletizer Line-fangsheng
Detail 5
BOPP Film Pelletizer Line-fangsheng
Detail 6
