BOPP Film Pelletizer Machine

BOPP Film Pelletizer Machine Description:

BOPP film pelletizer machine for recycling and waste plastic materials. Equipped with automatic temperature, electric change filter screen. After loading the feeder, the crushed material can be pelletized by a speed-regulating motor, and the material can be cut according to the feeding speed of the extruder.Final product pellets/ granules produced by BOPP film pelletizer line, can directly beused in the production line for film blowing, pipe extrusion and plastics injection, etc

BOPP Film Pelletizer Machine-fangsheng



BOPP Film Pelletizer Machine Features:

1.BOPP film pelletizer line crush and heat shrink the BOPP film to ensure uniform and effective feeding, high efficiency, and at the same time, it can save 40-50% of electricity compared with the same output.
2.Vibration dewatering method, saving power consumption and low noise.
3.The embedded water ring cooling system can effectively cool the BOPP plasticized material and is convenient for water ring cutting.

BOPP Film Pelletizer Machine Application:

BOPP Film Pelletizer Machine-fangsheng

BOPP Film Pelletizer Line Video:



BOPP Film Pelletizer Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

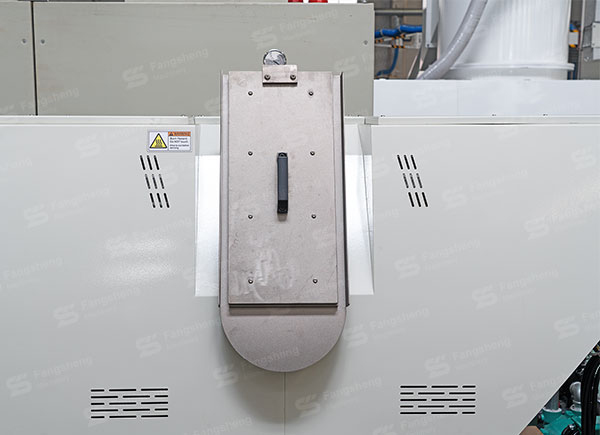

BOPP Film Pelletizer Line Detail:

BOPP Film Pelletizer Machine-fangsheng
Detail 1
BOPP Film Pelletizer Machine-fangsheng
Detail 2
BOPP Film Pelletizer Machine-fangsheng
Detail 3
BOPP Film Pelletizer Machine-fangsheng
Detail 4
BOPP Film Pelletizer Machine-fangsheng
Detail 5
BOPP Film Pelletizer Machine-fangsheng
Detail 6
