BOPP Film Pelletizing Equipment

BOPP Film Pelletizing Equipment Description:

The BOPP film pelletizing equipment integrates pulverization and granulation. The BOPP film pelletizing machine adopts automatic fan feeding. The special charging hopper is equipped with a forced feeding system (hydraulic automatic screen changing device is optional). PLC can be selected, automatic control, and high degree of automation. Save time and effort, greatly improve production efficiency.

BOPP Film Pelletizing Equipment-fangsheng

BOPP Film Pelletizing Equipment Features:

1. The BOPP film pelletizing machine adopts a split automatic power distribution system to ensure the normal operation of the motor;
2. Make full use of the high-pressure friction non-stop heating system to automatically heat the production, avoid continuous heating, save electricity and energy;
3. The screw and barrel are made of imported high-strength carbon structural steel, which is durable;
4. The appearance of the BOPP film pelletizing machine is beautiful and generous. Color and spray paint can be matched according to customer requirements.
5. All recycled materials can be produced after being sorted, broken and cleaned without being shaken or dried or sun-dried, and can be used for both dry and wet purposes;
6. From raw material crushing, cleaning, feeding to pelletizing, all are automated;

BOPP Film Pelletizing Equipment Application:

BOPP Film Pelletizing Equipment-fangsheng

BOPP Film Pelletizing Line Video:

BOPP Film Pelletizing Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

BOPP Film Pelletizing Line Detail:

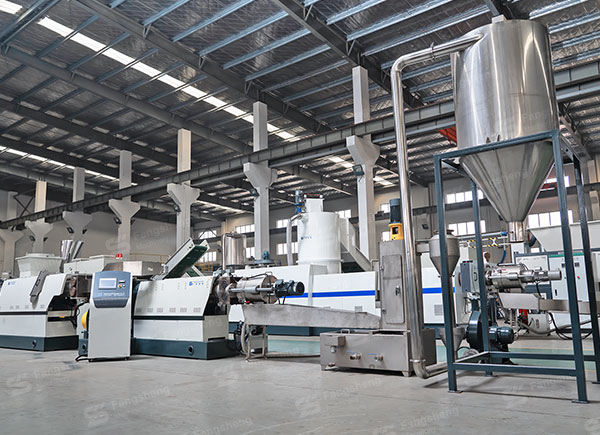

BOPP Film Pelletizing Equipment-fangsheng
Detail 1

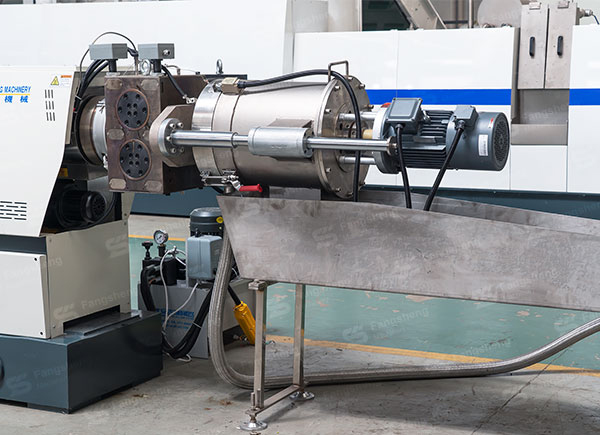

BOPP Film Pelletizing Equipment-fangsheng
Detail 2

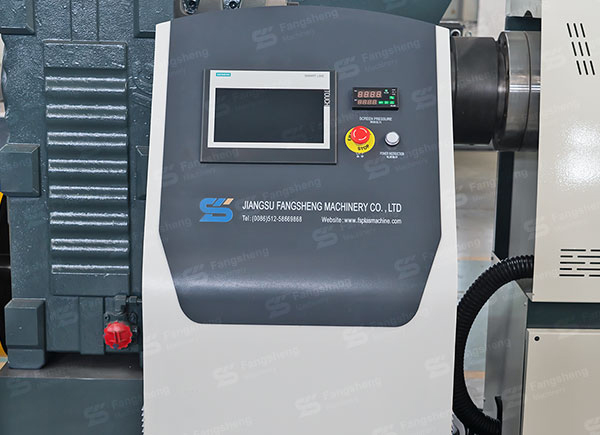

BOPP Film Pelletizing Equipment-fangsheng
Detail 3

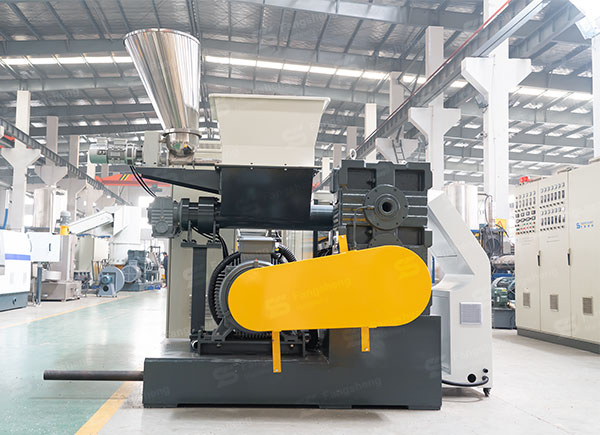

BOPP Film Pelletizing Equipment-fangsheng
Detail 4

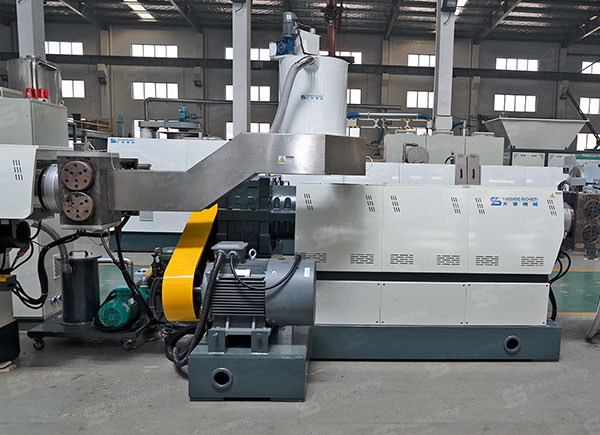

BOPP Film Pelletizing Equipment-fangsheng
Detail 5

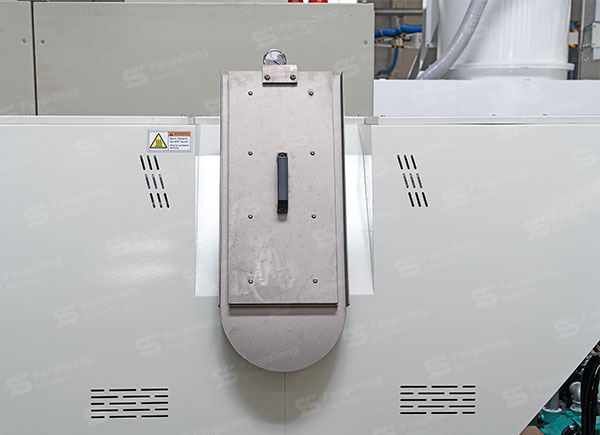

BOPP Film Pelletizing Equipment-fangsheng
Detail 6
