CPP Film Granulating Equipment

CPP Film Granulating Equipment Description:

High-efficiency CPP film granulating equipment from Fangsheng is designed for recycling plastic CPP,PP etc. It is widely used to make bags, film rolls, stretch films, shrink Film, multilayer film, t-shirt bag cutting; foamed PE, sheet, food container, fruit net, lid, fiber, raffia, silk, yarn, woven bag, big bag. One pelletizing machine can produce more than 10 kinds of plastic materials.

CPP Film Granulating Equipment-fangsheng

CPP Film Granulating Equipment Features:

1. The barrel and screw of the same direction parallel twin-screw granulator are designed according to the building block principle, and different combinations can be made according to the needs. CPP film granulating machine adopts electric heating and water cooling to automatically control the temperature of the barrel, and is equipped with forced feeding and quantitative feeding, vacuum exhaust and non-stop screen changing devices.
2. Equipped with a specially designed barrel and screw and a single screw with exhaust system to ensure high output.
3. Single screw mainly includes natural exhaust type granulation and vacuum exhaust type granulation. There are water-drawing cooling method and air-cooling cooling method for forming.
4. The CPP film granulating machine can work with forced feeding, quantitative feeding, weighing feeding, and central feeding systems. The main machine of the CPP film granulating machine adopts variable frequency speed regulation, AC motor drive or DC speed regulation, DC motor drive.

CPP Film Granulating Equipment Application:

CPP Film Granulating Equipment-fangsheng

CPP Film Granulating Equipment Video:

CPP Film Granulating Machine Technical Parameter:


FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

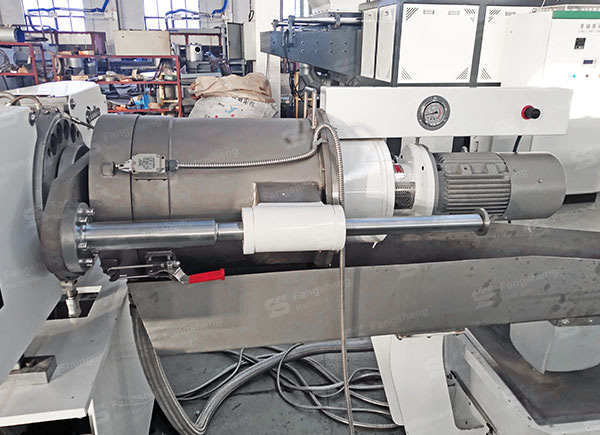

CPP Film Granulating Machine Detail:

CPP Film Granulating Equipment-fangsheng
Detail 1
CPP Film Granulating Equipment-fangsheng
Detail 2
CPP Film Granulating Equipment-fangsheng
Detail 3
