CPP Film Granulator System

CPP Film Granulator System Description:

The CPP film granulator system integrates the transportation, crushing, extrusion and granulation of raw materials into one, saving the labor of repeated turnover and transportation of raw materials during the production process. After the raw materials are plasticized and filtered by the screen changer, they are directly flushed into the pelletizer with water. The waste of labor and raw materials of the traditional strand pelletizer is improved, and the work efficiency is greatly improved. The CPP film granulator system has high output, low energy consumption, low labor intensity of workers, and good recycling and granulation quality. CPP film granulator line is an ideal equipment for recycling and granulating waste films.

CPP Film Granulator System-fangsheng

CPP Film Granulator System Features:

1. After the CPP film granulator line is discharged, the pellets are cut directly by the water ring, dehydrated by the dehydrator, and the appropriate pellets are selected through the vibrating screen and then sent to the storage bin by the fan.
2. The particles are beautiful in appearance, cylindrical in shape, and the size and thickness can be adjusted;
3. The forced feeding device of the CPP film granulator line, the host and the pelletizer are all controlled by frequency converters;

CPP Film Granulator Line Application:

CPP Film Granulator System-fangsheng

CPP Film Granulator Line Video:

CPP Film Granulator Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

CPP Film Granulator System Detail:

CPP Film Granulator System-fangsheng

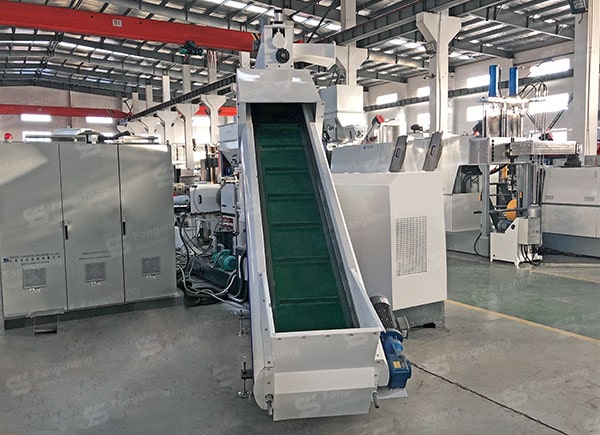

Detail 1
CPP Film Granulator System-fangsheng

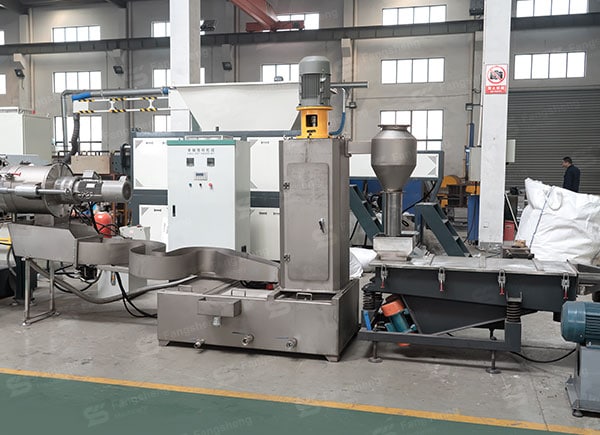

Detail 2
CPP Film Granulator System-fangsheng

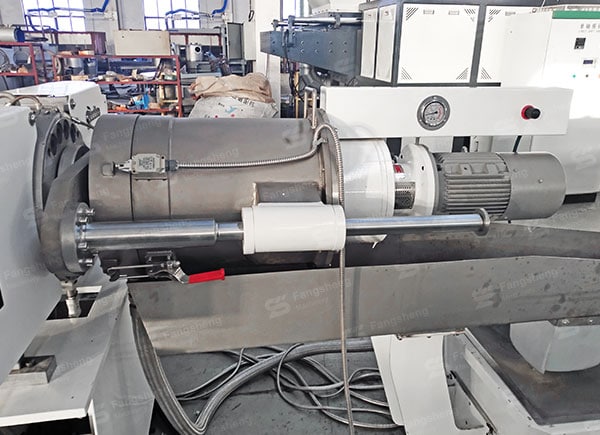

Detail 3
