CPP Film Pelletizer System

CPP Film Pelletizer System Description:

The pelletizing technology of the traditional waste plastic recycling extrusion pelletizing machine is to extrude the melt to be cooled and solidified and pelletized, while the CPP film pelletizer system is directly underwater pelletizing in the melt state This is a new type of machine, melt pelletizing has obvious advantages over solid pelletizing. Pelletizing underwater pelletizing extrusion pelletizing unit is mainly equipped with: two-stage exhaust extruder, underwater pelletizing die, and flexible knife It consists of a vertical automatic dewatering device, a vibrating separation screen, an air conveying system, and an aggregate hopper.

CPP Film Pelletizer System-fangsheng

CPP Film Pelletizer System Features:

1. Since the plastic is scraped off by the blade in the melt state and solidified after being cooled by circulating water, polymers of different viscosities can be pelletized by this type of pelletizing, and the pelletizing in the melt state will not form any dust, and The shape of the cut pellets is regular, and the packaging and transportation are more convenient.
2. According to the extrusion volume, it can automatically adjust the output of the die and the cutting speed to change the size of the pellets. You can also manually use the knife holder with different blades to change the shape of the pellets.
3.CPP film pelletizer line  pellets the plastic melt and cools it, so that the pelletizing process can be automated, the operation is convenient, the noise is low, and the slice quality is good.

CPP Film Pelletizer System Application:

CPP Film Pelletizer System-fangsheng

CPP Film Pelletizer Machine Video:

CPP Film Pelletizer Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

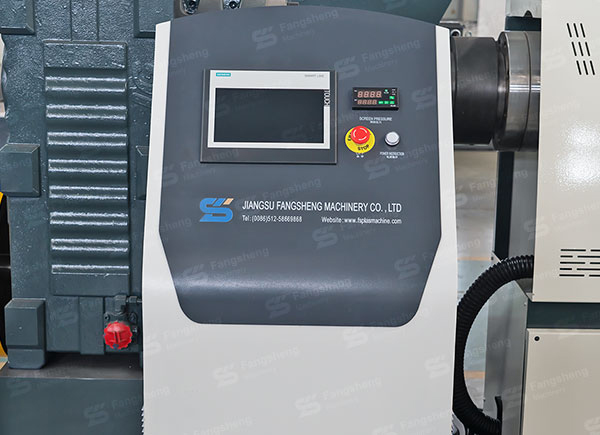

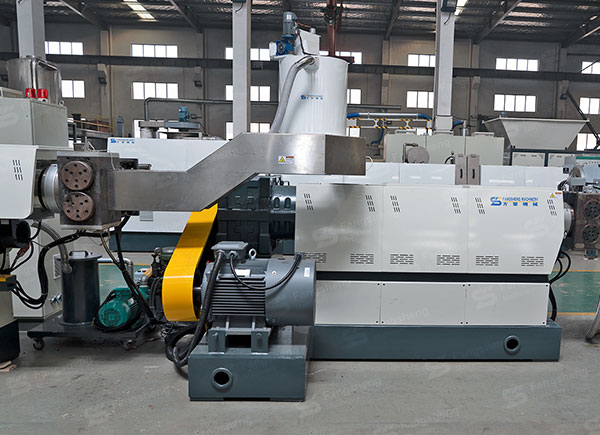

CPP Film Pelletizer Machine Detail:

CPP Film Pelletizer System-fangsheng
Detail 1
CPP Film Pelletizer System-fangsheng
Detail 2
CPP Film Pelletizer System-fangsheng
Detail 3
CPP Film Pelletizer System-fangsheng
Detail 4
CPP Film Pelletizer System-fangsheng
Detail 5
CPP Film Pelletizer System-fangsheng
Detail 6
