CPP Film Pelletizing System

CPP Film Pelletizing System Description:

The CPP film pelletizing system is designed for blown film, garment packaging bags, industrial waste film, washed agricultural film, garbage film, PP woven bags, non-woven bags, ton bag pelletizing and the remaining waste of PE trimmings Designed. The CPP film pelletizing system combines cutting, extrusion and granulation together. The raw materials do not need to be pre-cut, and can be directly sent to the PP CPP film cutting, compaction and pelletizing production line.

CPP Film Pelletizing System-fangsheng



CPP Film Pelletizing System Features:

1. The entire CPP film pelletizing line has a high degree of automation.  Only one person needs to feed materials to the conveyor belt, realizing the direct transformation from waste plastics to finished pellets;
2. The finished particles are of high quality, no bubbles, full and round; beautiful in appearance, the shape is in the shape of a disc, and the size and thickness can be adjusted;
3. The CPP film pelletizing line is non-stop hydraulic screen changing device, and there is a pressure sensor on the die head to prompt the screen to be changed. The screen does not need to be stopped when changing the screen, and the screen changing speed is fast and convenient.
4. The CPP film pelletizing line is directly cut by the water ring on the die. It can be horizontal or vertical water ring. After the water is cooled, it enters the centrifugal dehydrator, and then is sent to the storage bin by the fan without the problem of wire breakage;
5. There is a drainage port and a vacuum pump on the barrel of the granulation line to drain and exhaust to ensure the quality of particles;

CPP Film Pelletizing System Application:

CPP Film Pelletizing System-fangsheng

CPP Film Pelletizing System Video:

CPP Film Pelletizing Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

CPP Film Pelletizing Machine Detail:

CPP Film Pelletizing System-fangsheng

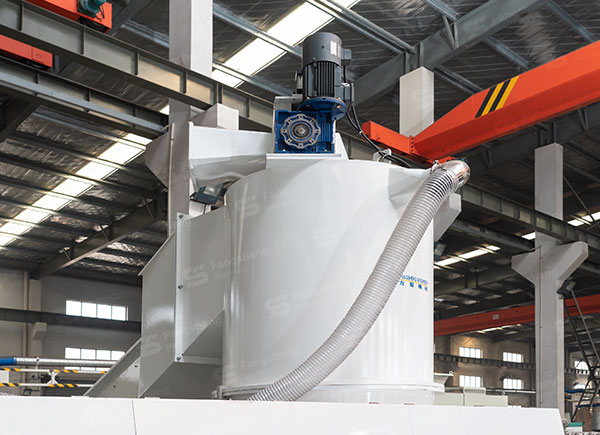

Detail 1
CPP Film Pelletizing System-fangsheng

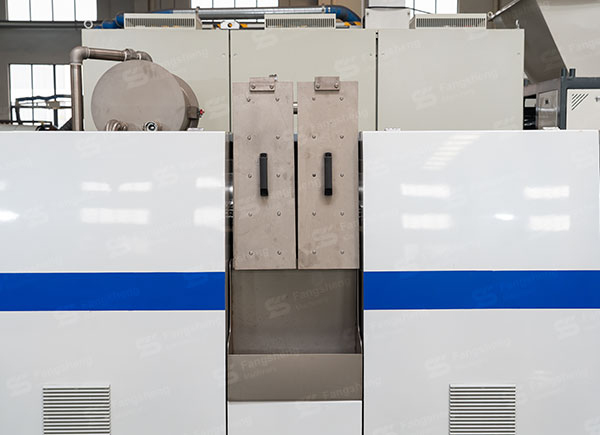

Detail 2
CPP Film Pelletizing System-fangsheng

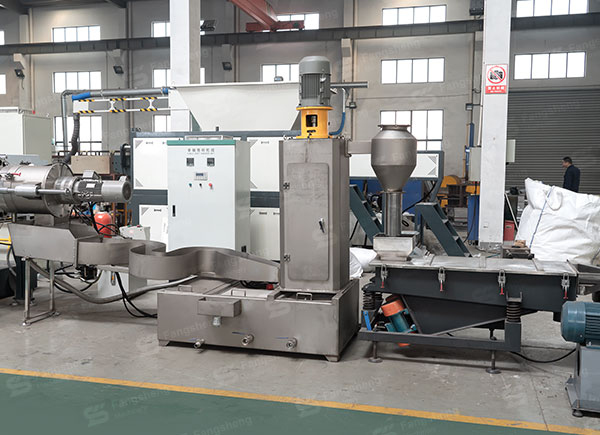

Detail 3
CPP Film Pelletizing System-fangsheng

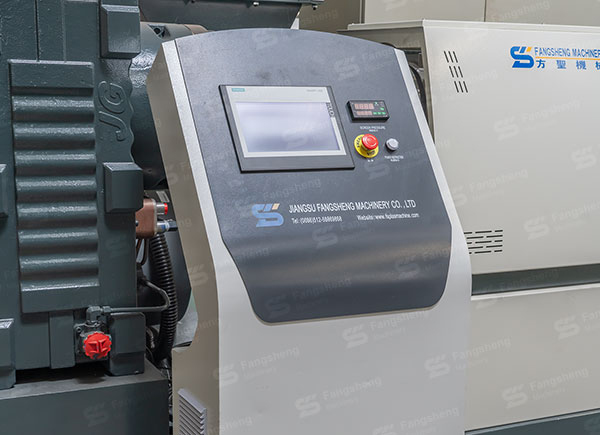

Detail 4
CPP Film Pelletizing System-fangsheng

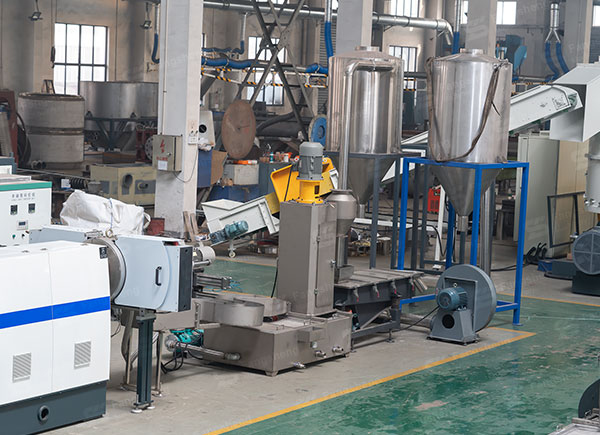

Detail 5
CPP Film Pelletizing System-fangsheng

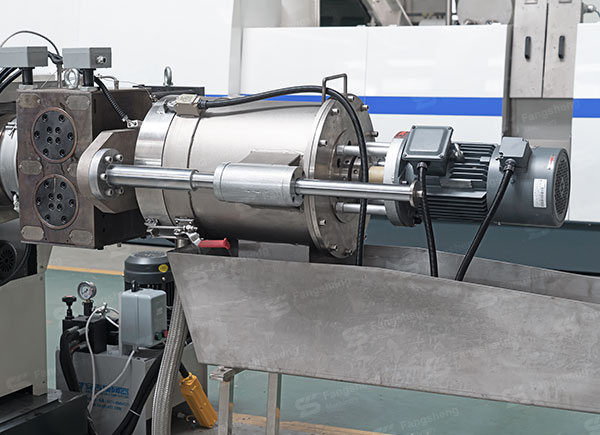

Detail 6
