HDPE Film Granulator System

HDPE Film Granulator System Description:

The HDPE film granulator system is a three-in-one recycling machine specially designed for low-density plastic products. The HDPE film granulator machine can provide excellent recycling and granulation solutions for films, raffia fibers, filaments, woven bags and non-woven fabrics, all of which come from production plants and cleaning production lines. The HDPE film granulator machine has a wide range of applications in  HDPE, PE film recycling, PP big bag recycling, and material recycling.



HDPE Film Granulator System-fangsheng



HDPE Film Granulator System Features:

1. Feeding mode of the HDPE film granulator line: the specially designed forced feeder, side feeder and compactor can push the material into the extruder efficiently. Guarantee good machine capacity
2. Gear reducer of the HDPE film granulator line: high torque, hard surface gear reducer with water cooling circulation system, which can ensure smooth operation of pipeline, quiet and long service life.
3. The barrel and screw of the HDPE film granulator line: special materials and the hardness treatment of the screw and barrel make the extruder have good wear resistance.



HDPE Film Granulator Line Application:

HDPE Film Granulator System-fangsheng



HDPE Film Granulator Line Video:



HDPE Film Granulator Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

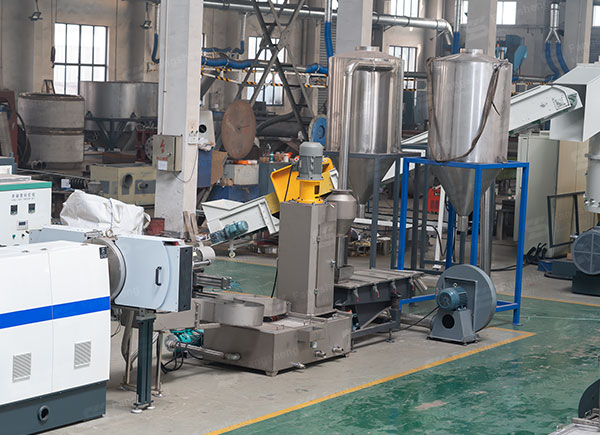

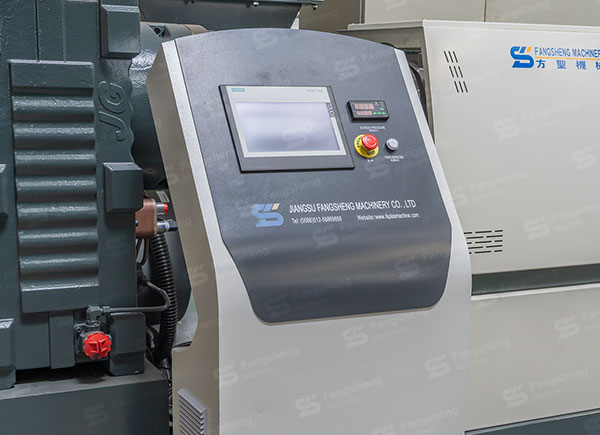

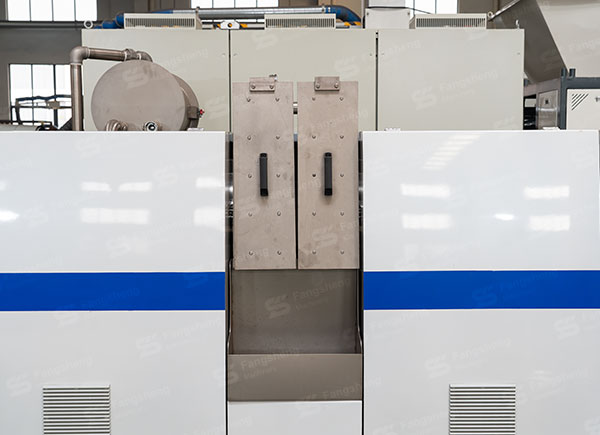

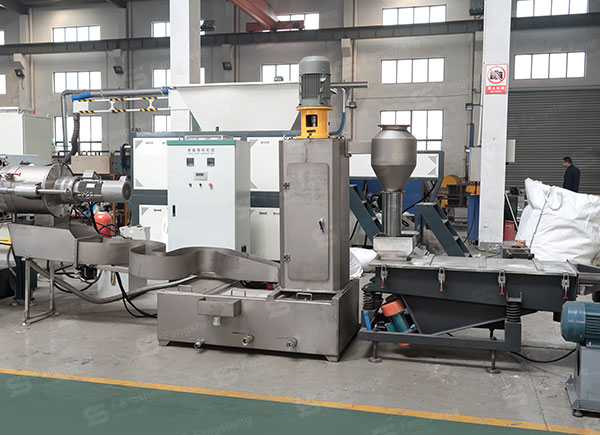

HDPE Film Granulator System Detail:

HDPE Film Granulator System-fangsheng
Detail 1
HDPE Film Granulator System-fangsheng
Detail 2
HDPE Film Granulator System-fangsheng
Detail 3
HDPE Film Granulator System-fangsheng
Detail 4
HDPE Film Granulator System-fangsheng
Detail 5
HDPE Film Granulator System-fangsheng
Detail 6
