LDPE Film Granulating Machine

LDPE Film Granulating Machine Description:

The LDPE film granulating machine can provide excellent regranulation and recycling solutions for films, filaments, woven bags and non-woven fabrics and other soft or hard plastics that are consumed/late. Our LDPE film granulator has a wide range of applications in the recycling of waste plastic materials such as PE, HDPE, LDPE, LLDPE, PP, BOPP, and CPP.

LDPE Film Granulating Machine-fangsheng



LDPE Film Granulating Machine Features:

1.This LDPE film granulator is mainly designed for processing PE/PP waste film flake.
2.We can use single slage and double slage granulating line according to materials.
3.For screw L/D varies according to the material condition,for example,rigid material or film flake.
4.This LDPE film granulator can also be equipped with metal detectors,to ensure the quality of the products.

LDPE Film Granulating Machine Application:

LDPE Film Granulating Machine-fangsheng

LDPE Film Granulating Line Video:

LDPE Fihttps://www.fsplasmachine.com/ldpe-film-granulating-machine/lm Granulating Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

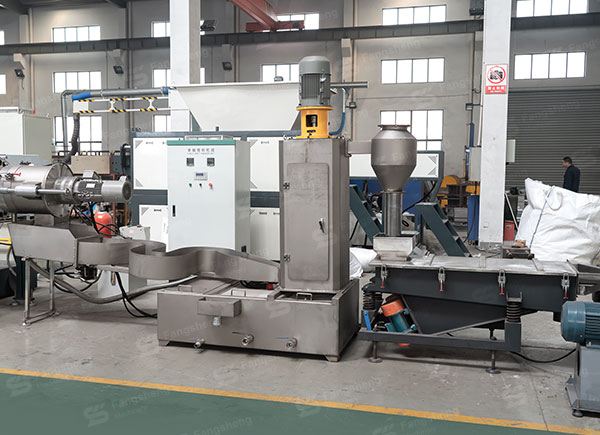

LDPE Film Granulating Line Detail:

LDPE Film Granulating Machine-fangsheng
Detail 1
LDPE Film Granulating Machine-fangsheng
Detail 2
LDPE Film Granulating Machine-fangsheng
Detail 3
