LDPE Film Granulation System

LDPE Film Granulation System Description:

The LDPE film granulation system by Fangsheng Machinery is specially designed to recycle PE (HDPE, LDPE, LLDPE) and PP packaging materials. Except for the clean waste (waste produced by the production line), the printed surface, the washed waste and the crushed small fragments, all can be recycled with a pelletizer. The waste suitable for the automatic LDPE film granulation system includes: plastic bag factory waste, food packaging waste, all kinds of plastic bags, shrink film, wrapping film, agricultural film, PE&PS foam material, PP drawing, woven bag, space bag And the pulverized hollow molding and injection products can all be recycled and granulated by a fully automatic granulator.

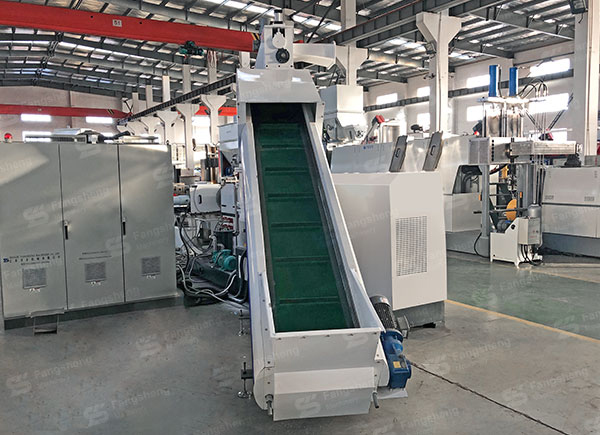

LDPE Film Granulation System-fangsheng



LDPE Film Granulation System Features:

1. The compulsory feeding device of the LDPE film granulation system, the host and the pelletizer are all controlled by frequency converters;
2. The screw and barrel of the LDPE film granulation line are made of 38CrMoA1 material, and the surface is nitrided and hardened, and the service life is super long;
3. The gearbox of the LDPE film granulation line adopts the hard-tooth surface oil-cooled gearbox, which is half the weight of the soft-tooth gearbox, is resistant to wear, and the service life is increased by 3~4 times, and the carrying capacity is increased by 8~10 times;
4. After the LDPE film granulation line is discharged, the pellets are cut directly by the water ring, dehydrated by the dehydrator, and the appropriate pellets are selected through the vibrating screen and sent to the storage bin by the fan.
5. There is a drainage port and a vacuum pump on the barrel of the granulation line to drain and exhaust to ensure the quality of the particles.

LDPE Film Granulation System Application:

LDPE Film Granulation System-fangsheng

LDPE Film Granulation Machine Video:

LDPE Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

LDPE Film Granulation Machine Detail:

LDPE Film Granulation System-fangsheng
Detail 1
LDPE Film Granulation System-fangsheng
Detail 2
LDPE Film Granulation System-fangsheng
Detail 3
