LDPE Film Granulator Equipment

LDPE Film Granulator Equipment Description:

LDPE film granulator equipment is high torque designed which attains the functions of low noise and stable operation.The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, they have very good plasticization and mixing effect and the production capacity is high. The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform.

LDPE Film Granulator Equipment-fangsheng



LDPE Film Granulator Equipment Features:

1.Single stage extruder and double stage extruders can be used according to user’s requirement or material condition.
2. Plastic pelletized polyethylene (PE), polypropylene (PP), LDPE, HDPE and other engineering plastics or general plastics recycling and granulation.
3. Granules cutting type: water ring face cutting, strip/noodle type cutting and hot cutting;
4. Waste woven bags and waste film can be directly put into the granulation line without crushing.
5. The main engine is equipped with full automatic control cabinet and PLC operating system. It is easy to operate and has stable performance.
6. LDPE film Granulator Machine low energy consumption, remarkable energy saving effect, high output, mechatronics.



LDPE Film Granulator Equipment Application:

LDPE Film Granulator Equipment-fangsheng



LDPE Film Granulator MachineVideo:



LDPE Film Granulator Equipment Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

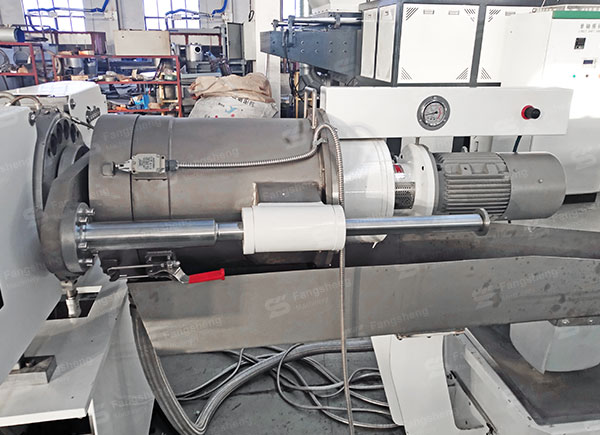

LDPE Film Granulator Machine Detail:

LDPE Film Granulator Equipment-fangsheng
Detail 1
LDPE Film Granulator Equipment-fangsheng
Detail 2
LDPE Film Granulator Equipment-fangsheng
Detail 3
