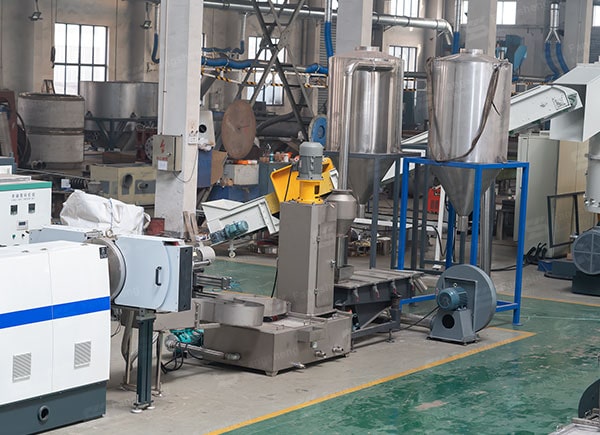

LDPE Film Granulator System

LDPE Film Granulator System Description:

The LDPE film granulator system adopts advanced design principles. LDPE film granulator system uses mechanical friction to reach the softening point temperature, twists into strips, and forms particles. This changes the traditional heating and stretching principle of granulation. Waste materials such as plastic film, silk, ribbons, sheets, soft plastic tubes, foaming materials, degradable materials, and corner materials enable the pellets to be regenerated. The advantages are that the material loss of the granulation material is small, the production speed is high, and the granulation has a high degree of flatness and density. High efficiency, energy saving, convenient operation, stable product quality, LDPE film granulator machine is a new type of plastic recycling and pelletizing equipment.

LDPE Film Granulator System-fangsheng

LDPE Film Granulator System Features:

1. Recycle LDPE, polypropylene, low density polyethylene, high density polyethylene, linear low density polyethylene and other soft plastic film, bag, silk, sheet and pipe waste and waste, and carry out reproduction;

2. Recovering and regenerating degradable plastic film and Angle material through grinding and granulation;

3. Smash and granulate the chemical fiber waste and treat the waste silk for reproduction;

4. LDPE film granulator machine, can be replaced mixer or dryer.

LDPE Film Granulator System Application:

LDPE Film Granulator System-fangsheng

LDPE Film Granulator Line Video:

LDPE Film Granulator Line Technical Parameter:


FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

LDPE Film Granulator Line Detail:

LDPE Film Granulator System-fangsheng
Detail 1
LDPE Film Granulator System-fangsheng
Detail 2
LDPE Film Granulator System-fangsheng
Detail 3
LDPE Film Granulator System-fangsheng
Detail 4
LDPE Film Granulator System-fangsheng
Detail 5
LDPE Film Granulator System-fangsheng
Detail 6
