LDPE Film Pelletizer Machine

LDPE Film Pelletizer Machine Description:

The body of the LDPE film pelletizer machine includes a crushing unit, an extrusion unit and a pelletizing unit. The three-in-one design of the LDPE film pelletizer line allows the collected materials to be directly sent to the machine for processing to obtain the final recycled plastic pellets, eliminating the need for labor, factory space and power consumption for crushing, extruding, and pelletizing.

LDPE Film Pelletizer Machine-fangsheng

LDPE Film Pelletizer Machine Features:

1.We can use single slage and double slage granulating line according to materials.
2.This LDPE film pelletizer line can also be equipped with metal detectors,to ensure the quality of the products.
3.Granules cutting type: water ring face cutting, strip/noodle type cutting and hot cutting.
4.Low energy consumption, remarkable energy saving effect, high output, mechatronics.

LDPE Film Pelletizer Line Application:

LDPE Film Pelletizer Machine-fangsheng

LDPE Film Pelletizer Line Video:

LDPE Film Pelletizer Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

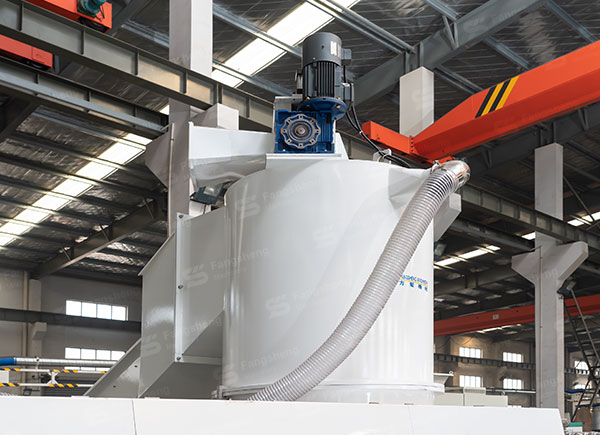

LDPE Film Pelletizer Line Detail:

LDPE Film Pelletizer Machine-fangsheng
Detail 1
LDPE Film Pelletizer Machine-fangsheng
Detail 2
LDPE Film Pelletizer Machine-fangsheng
Detail 3
LDPE Film Pelletizer Machine-fangsheng
Detail 4
LDPE Film Pelletizer Machine-fangsheng
Detail 5
LDPE Film Pelletizer Machine-fangsheng
Detail 6
