LLDPE Film Granulating Line

LLDPE Film Granulating Line Description:

Double stage LLDPE film granulating line is especially good for the raw material which contain high moisture, high impurities.The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination.And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

LLDPE Film Granulating Line-fangsheng

LLDPE Film Granulating Line Features:

1. According to the type of raw material, the LLDPE film granulating machine allows free assembly of screw components.
2. The LLDPE film granulating machine uses a suitable die for stacking, such as water ring cutting, underwater cutting and hot surface cutting.
3. The high-efficiency feeder ensures stable large-capacity feeding and low energy consumption.
4. The main screw has a vacuum exhaust device.
5. Water ring granulator with dryer.
6. Single screw extruder, specially designed screw, barrel and exhaust system to ensure the good quality of the final product.
7. Granulation method: standard cutting with extrusion die. The uniform cut ensures a good shape.

LLDPE Film Granulating Line Application:

LLDPE Film Granulating Line-fangsheng

LLDPE Film Granulating Line Video:

LLDPE Film Granulating Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

LLDPE Film Granulating Machine Detail:

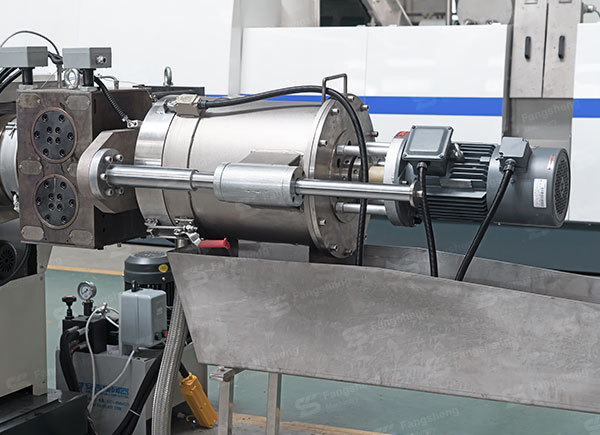

LLDPE Film Granulating Line-fangsheng
Detail 1
LLDPE Film Granulating Line-fangsheng
Detail 2
LLDPE Film Granulating Line-fangsheng
Detail 3
LLDPE Film Granulating Line-fangsheng
Detail 4
LLDPE Film Granulating Line-fangsheng
Detail 5
LLDPE Film Granulating Line-fangsheng
Detail 6
