LLDPE Film Granulating System

LLDPE Film Granulating System Description:

The LLDPE film granulating system is specially designed for blown film, garment packaging bag, industrial waste film, washed agricultural film, garbage film, PP woven bag, non-woven bag, ton bag granulation and surplus PE accessories. The PE film slitting and pelletizing production line includes belt conveyors, slitting pelletizers, extruders, pelletizing devices, pellet cooling, drying devices, storage tanks, etc. The LLDPE film granulating system integrates cutting, extrusion and granulation. The raw materials do not need to be pre-cut, and can be directly sent to the PE PP film cutting, compaction and pelletizing production line. The cutting compactor generates frictional heat during the compaction process, which helps to dry and remove the water in the water-washed film.

LLDPE Film Granulating System-fangsheng

LLDPE Film Granulating System Features:

1. The LLDPE film granulating  line is continuously improved on the basis of advanced technology at home and abroad, with reasonable design and beautiful appearance, and the parts in contact with materials are made of stainless steel;
2. There is a drainage port and a vacuum pump on the barrel of the granulation line to drain and exhaust to ensure the quality of the particles;
3. Efficient forced feeding ensures high feeding and low energy consumption.
4. Pelletizing system: Both strips and water ring are available. If the extrusion die uses water ring cutting, the perfect appearance of the particles can be ensured.

LLDPE Film Granulating System Application:

LLDPE Film Granulating System-fangsheng

LLDPE Film Granulating Line Video:

LLDPE Film Granulating Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

LLDPE Film Granulating Line Detail:

LLDPE Film Granulating System-fangsheng

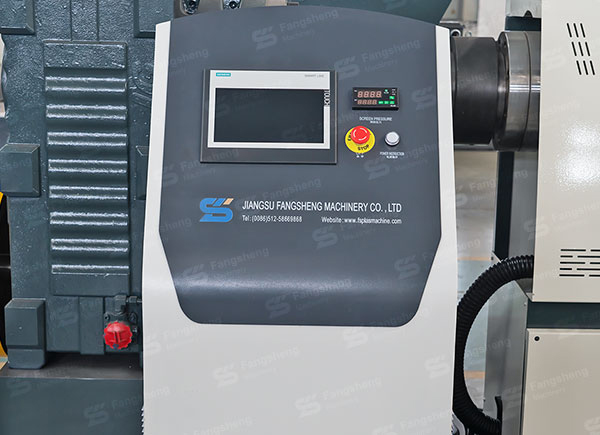

Detail 1
LLDPE Film Granulating System-fangsheng

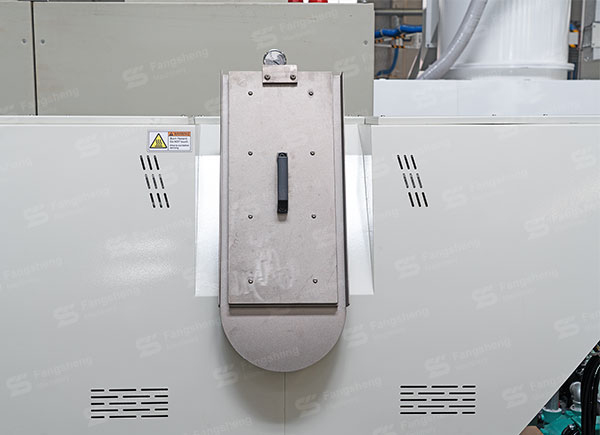

Detail 2
LLDPE Film Granulating System-fangsheng

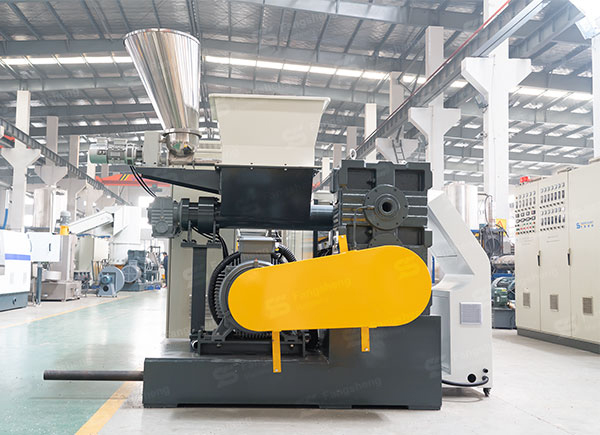

Detail 3
LLDPE Film Granulating System-fangsheng
Detail 4
LLDPE Film Granulating System-fangsheng
Detail 5
LLDPE Film Granulating System-fangsheng
Detail 6
