LLDPE Film Granulation Equipment

LLDPE Film Granulation Equipment Description:

The reasonable design of the LLDPE film granulation equipment has the characteristics of increasing production capacity and low energy consumption. The LLDPE film granulation machine is equipped with a large-torque reduction box and a motor. The screw of this LLDPE film granulation machine has the effect of no dead corners and no iron jamming. It increases the production capacity and increases the plasticization effect of the plastic. Exhaust, dual exhaust structure, dry material, wet material, washing material can be fully drained and exhausted, so that the particles are strong and full of gloss. The LLDPE film granulation machine is used to granulate various plastics, mainly for PE, LLDPE and other plastics.

LLDPE Film Granulation Equipment-fangsheng



LLDPE Film Granulation Equipment Features:

1. The LLDPE film granulation machine is automated from raw material crushing, cleaning, feeding to pelletizing;
2. Make full use of the high-pressure friction continuous heating system to automatically heat production, avoid continuous heating, save electricity and energy;
3. The split automatic power distribution system is adopted to ensure the normal operation of the motor;
4. The screw and barrel are made of imported high-strength carbon structural steel, which is durable;
5. The appearance of the LLDPE film granulation machine is beautiful and generous. Color and spray paint can be matched according to customer requirements.

LLDPE Film Granulation Equipment Application:

LLDPE Film Granulation Equipment-fangsheng

LLDPE Film Granulation Equipment Video:

LLDPE Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

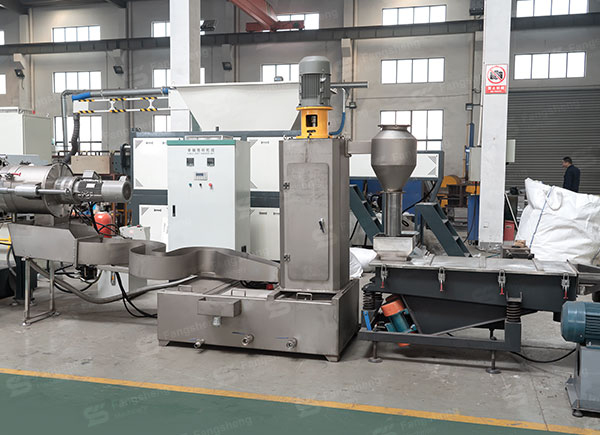

LLDPE Film Granulation Machine Detail:

LLDPE Film Granulation Equipment-fangsheng
Detail 1
LLDPE Film Granulation Equipment-fangsheng
Detail 2
LLDPE Film Granulation Equipment-fangsheng
Detail 3
LLDPE Film Granulation Equipment-fangsheng
Detail 4
LLDPE Film Granulation Equipment-fangsheng
Detail 5
LLDPE Film Granulation Equipment-fangsheng
Detail 6
