LLDPE Film Granulation Machine

LLDPE Film Granulation Machine Description:

The LLDPE film granulation machine is very suitable for recycling various waste plastics, such as plastic films, sheets and pattern materials. Adopt PID temperature control, non-stop filter screen hydraulic reversal, high degree of automation. The special feature of this LLDPE film granulation equipment is the particles with good plastic properties.

LLDPE Film Granulation Machine-fangsheng



LLDPE Film Granulation Machine Features:

1. The LLDPE film granulation line has a high degree of automation and is a fully automatic assembly line, which realizes the direct transformation from waste plastics to finished pellets.
2. After the pelletizing line is discharged, the pellets are cut directly by the water ring, dehydrated by the dehydrator, and the appropriate pellets are selected through the vibrating screen and then sent to the storage bin by the fan.
3. The particles are beautiful in appearance, cylindrical in shape, and the size and thickness can be adjusted.
4.The forced feeding device of the pelletizing line, the host and the pelletizer are all controlled by frequency converters.
5. There is a drainage port and a vacuum pump on the barrel of the granulation line to drain and exhaust to ensure the quality of the particles.
6. The screw and barrel of the pelletizing line are made of special materials, and the surface is nitrided and hardened, which has a long service life.

LLDPE Film Granulation Machine Application:

LLDPE Film Granulation Machine-fangsheng

LLDPE Film Granulation Machine Video:

LLDPE Film Granulation Equipment Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

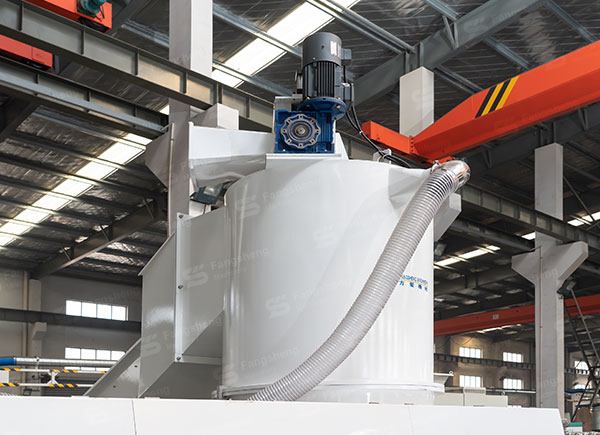

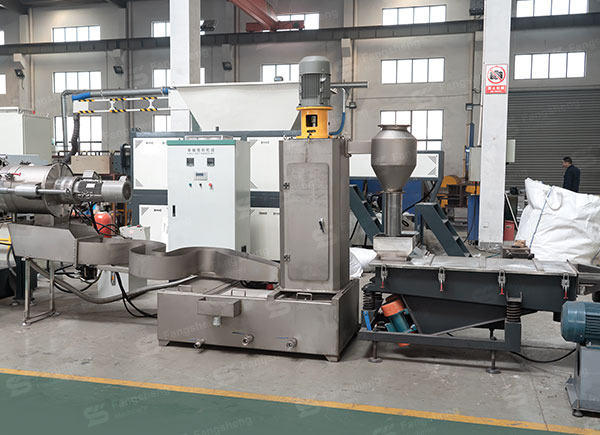

LLDPE Film Granulation Equipment Detail:

LLDPE Film Granulation Machine-fangsheng
Detail 1
LLDPE Film Granulation Machine-fangsheng
Detail 2
LLDPE Film Granulation Machine-fangsheng
Detail 3
LLDPE Film Granulation Machine-fangsheng
Detail 4
LLDPE Film Granulation Machine-fangsheng
Detail 5
LLDPE Film Granulation Machine-fangsheng
Detail 6
