PE Film Granulating System

PE Film Granulating System Description:

The PE film granulating system has reasonable structure, convenient operation, stable operation, safe power saving and high degree of automation. The main machine is equipped with different heads and auxiliary machines, and can produce various sorted waste plastics. PE film granulating machine is mainly used in PP, PE, PA, etc.It is a kind of plastic recycling processing machinery and equipment widely used in the waste plastic recycling industry.This PE film granulating machine can produce plastic pellets by extrusion, cooling, and pelletizing of greenhouse films, beverage bottles, inner lining bags, polypropylene, woven bags, cement bags, strapping, and strapping.

PE Film Granulating System-fangsheng

PE Film Granulating System Features:

1. The heating system of the PE film granulating machine is composed of heating rings, which are distributed separately outside the barrel to evenly heat and plasticize the materials in the barrel, and through the control of the instrument on the electric cabinet, the change of the set temperature is automatically adjusted.
2. The set temperature can be automatically adjusted through the control of the instrument on the electric cabinet, so that the material in the barrel can be uniformly heated and plasticized.
3. Through the evenly distributed heating ring outside the barrel, the temperature can be automatically adjusted by the instrument on the electric cabinet, and the heating and plasticizing of the material in the barrel can be completed evenly.

PE Film Granulating System Application:

PE Film Granulating System-fangsheng

PE Film Granulating Machine Video:

PE Film Granulating Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PE Film Granulating Machine Detail:

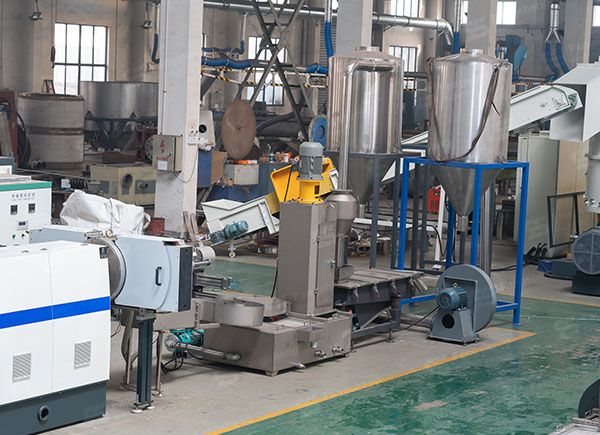

PE Film Granulating System-fangsheng
Detail 1

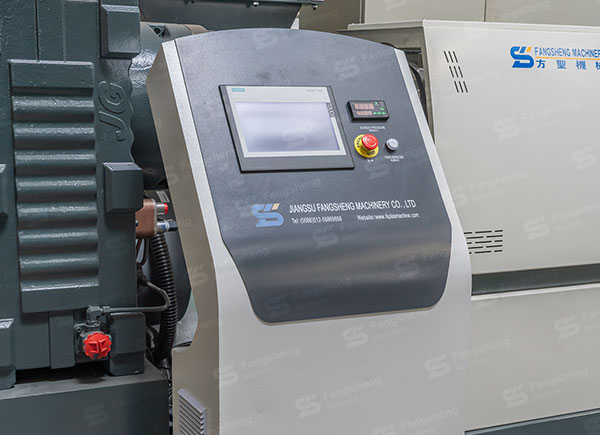

PE Film Granulating System-fangsheng
Detail 2

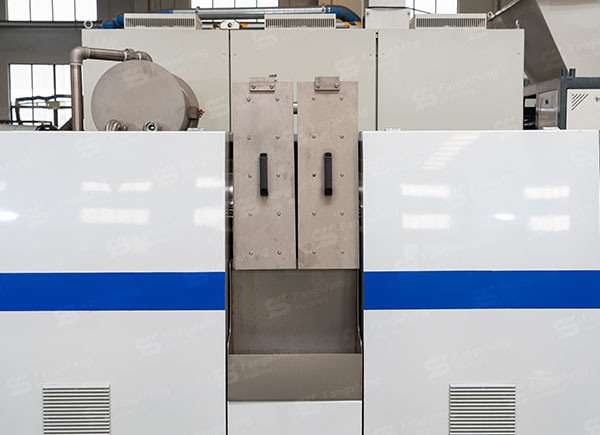

PE Film Granulating System-fangsheng
Detail 3

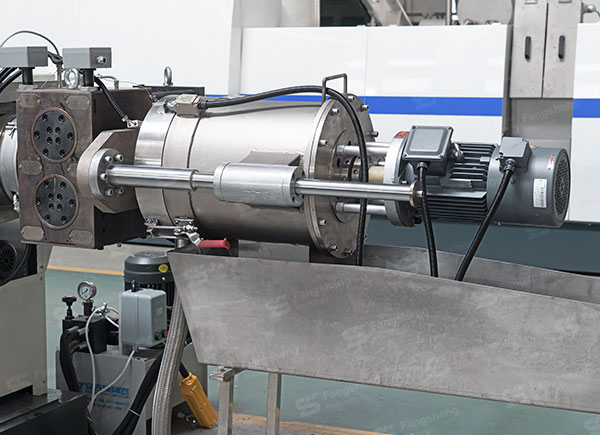

PE Film Granulating System-fangsheng
Detail 4

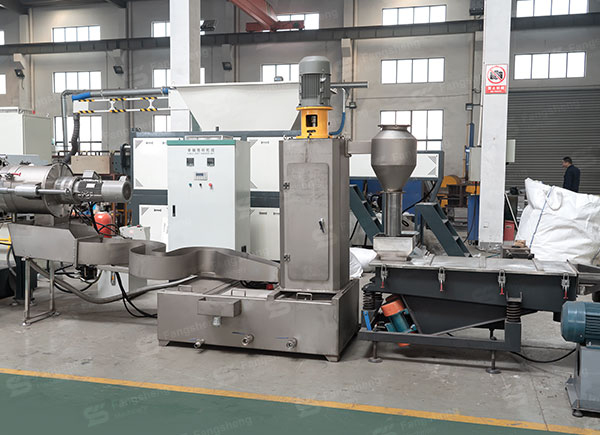

PE Film Granulating System-fangsheng
Detail 5

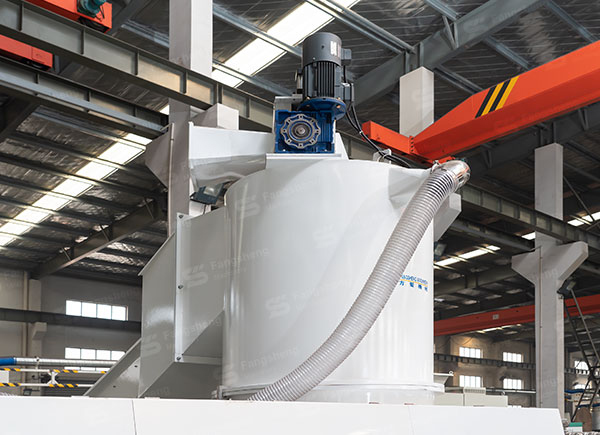

PE Film Granulating System-fangsheng
Detail 6
