PE Film Granulation Equipment

PE Film Granulation Equipment Description:

PE film granulation equipment  is used to make pellets from waste plastics, like PP, PE films.For plastic PP, PE films, we developed a compact pelletizing line for them. Due to the films are very soft and foamed, it’s difficult to be filled into extruder directly, even by force feeder screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and cost-effective concepts for this kind of machine, we developed the PP, PE film granulating machine.

PE Film Granulation Equipment-fangsheng



PE Film Granulation Equipment Features:

1. The PE film granulation machine is suitable for dry materials and wet materials. After all recycled materials are sorted, crushed and washed, they can be used for production without spin drying, oven drying or drying in the sun.
2. The PE film granulation equipment is fully automatic, from raw material crushing, washing, feeding to granulating.
3. Make full use of the advantages of the high-pressure friction continuous heating system, avoid continuous heating, and save energy.
4. Use an independent, fully automatic power distribution system to ensure that the motor runs in a safe and normal state.
5. The screw and barrel are made of high-strength carbon steel with long service life.

PE Film Granulation Equipment Application:

PE Film Granulation Equipment-fangsheng

PE Film Granulation Machine Video:

PE Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

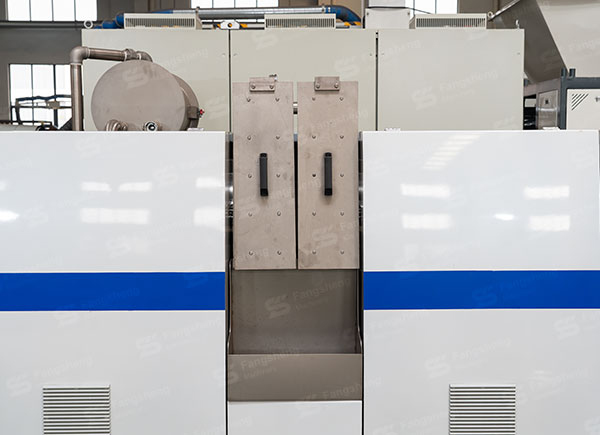

PE Film Granulation Machine Detail:

PE Film Granulation Equipment-fangsheng
Detail 1
PE Film Granulation Equipment-fangsheng
Detail 2
PE Film Granulation Equipment-fangsheng
Detail 3
PE Film Granulation Equipment-fangsheng
Detail 4
PE Film Granulation Equipment-fangsheng
Detail 5
PE Film Granulation Equipment-fangsheng
Detail 6
