PE Film Granulation Line

PE Film Granulation Line Description:

Our PE film granulation line uses a wet plastic granulator to cut large pieces of PP/PE film into uniform small pieces, the size is between 12-18mm. Our PE film granulation line has the unique ability to cut the plastic film quickly and efficiently using a fast-rotating open rotor and heavy-duty scissors. The rotor is installed in a double-scissors cutting array. When the plastic film enters the cutting chamber of the granulator, the rotor knife comes into contact with the fixed knife, thereby effectively cutting the film in a continuous manner.

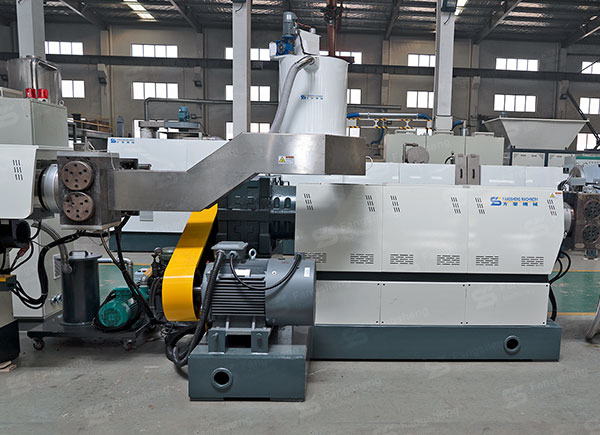

PE Film Granulation Line-fangsheng

PE Film Granulation Line Features:

1.To further benefit from our already robust structural design, our PE film granulation line use a wet granulation process where water is sprayed into the cutting chamber via nozzles. This not only partially cleans the PP/PE films, it also adds a layer of lubrication to reduce friction and heat during long operations. Based on our testing and experimentation, our wet granulators require 2-3 times less knife sharpening compared to dry granulating.
2.The size of the PE film shreds are controlled by a screen filter with holes that is mounted underneath the cutting chamber. The plastic film is held within the cutting chamber until it reaches the desired size and falls through this screen filter.
3.To ensure reliability and dulling in the most demanding situations, all knives used in our granulator is made from high quality SDK11 steel. For the sake of usability, all 12 rotor knives and 3 stationary knives can be easily adjusted with hydraulic assisted access to the cutting chamber.

PE Film Granulation Line Application:

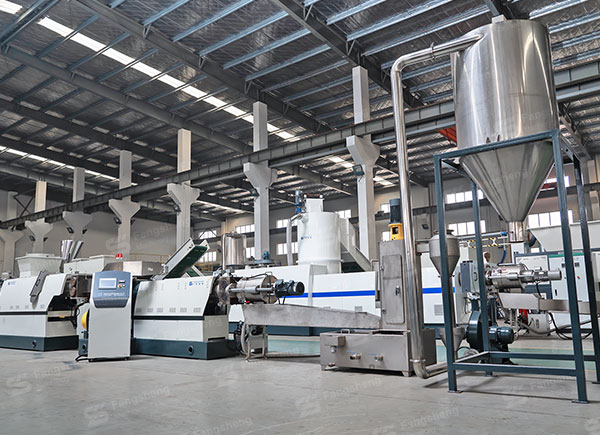

PE Film Granulation Line-fangsheng

PE Film Granulation Machine Video:

PE Film Granulation Machine Technical Parameter:


FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PE Film Granulation Machine Detail:

PE Film Granulation Line-fangsheng
Detail 1
PE Film Granulation Line-fangsheng
Detail 2
PE Film Granulation Line-fangsheng
Detail 3
PE Film Granulation Line-fangsheng
Detail 4
PE Film Granulation Line-fangsheng
Detail 5
PE Film Granulation Line-fangsheng
Detail 6
