PE Film Granulation Machine

PE Film Granulation Machine Description:

The screw element of the PE film granulation machine adopts computer-aided design for meshing conjugate type. The PE film granulator has excellent self-cleaning function and good interchangeability. Its specifications include conveying block, mixing block, kneading block, counter-current block and toothed disk, etc., through appropriate and reasonable combination, to achieve material transportation. Plasticization, shearing, dispersion, homogenization, exhaust, pressure building, etc., to realize the technological processing of polymer materials.

PE Film Granulation Machine-fangsheng



PE Film Granulation Machine Features:

1. The entire PE film granulation  line has a high degree of automation and is a fully automatic assembly line. As long as someone adds waste plastic in the front and someone in the back picks up the finished pellets, it can realize the direct transformation from waste plastics to finished pellets;
3. The produced particles are of high quality, without bubbles, and are full and round;
4. The made particles are beautiful in appearance, cylindrical in shape, and the size and thickness can be adjusted;
5. The forced feeding device of the PE film granulation line, the main machine and the granulator are all controlled by the frequency converter;
6. The screw and barrel of the pelletizing line are made of 38CrMoAl, and the surface is nitrided and hardened, and the service life is super long;

PE Film Granulation Machine Application:

PE Film Granulation Machine-fangsheng

PE Film Granulation Line Video:

PE Film Granulation Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PE Film Granulation Line Detail:

PE Film Granulation Machine-fangsheng

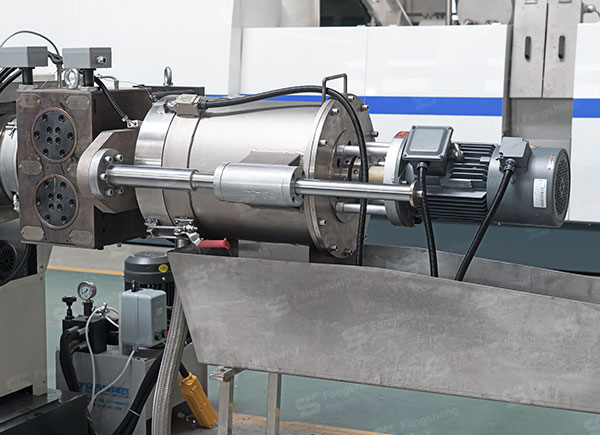

Detail 1
PE Film Granulation Machine-fangsheng

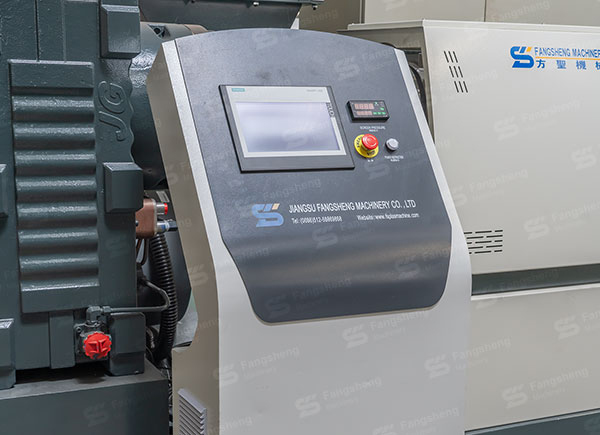

Detail 2
PE Film Granulation Machine-fangsheng

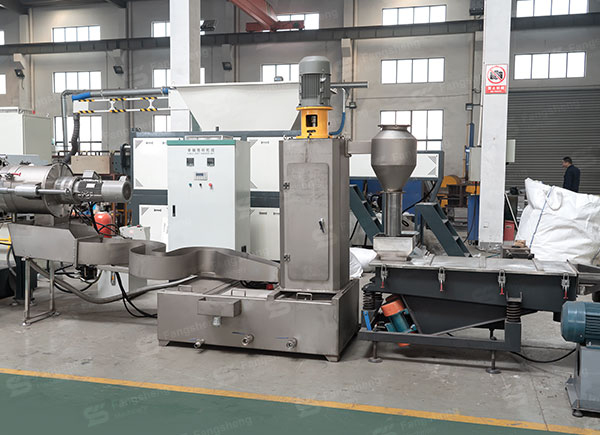

Detail 3
PE Film Granulation Machine-fangsheng

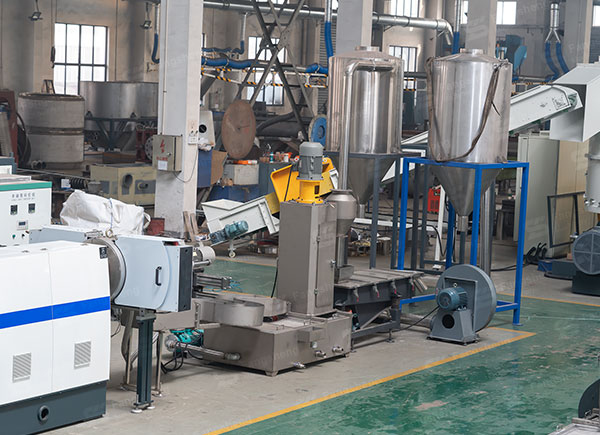

Detail 4
PE Film Granulation Machine-fangsheng

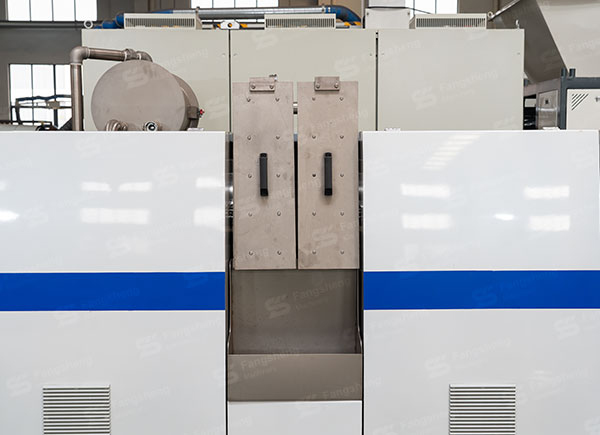

Detail 5
PE Film Granulation Machine-fangsheng
Detail 6
