PE Film Granulation System

PE Film Granulation System Description:

The PE film granulation system adopts a three-machine integrated (crushing-washing-granulation) structure design. Through automatic operation, the production efficiency is high and the processing capacity is strong. It is suitable for the recycling and granulation of most PE waste plastic films. The pelletizing unit completes one-time operation from feeding, crushing, cleaning, pelletizing, and pelletizing. The main and auxiliary machines and supporting equipment can choose a variety of specifications and models. Users can choose cost-effective options according to their own needs and budget. High configuration, and the entire production line can be customized design and production according to the area and space of the user’s production area, which can make more reasonable use of the delivery room space without waste.

PE Film Granulation System-fangsheng

PE Film Granulation System Features:

1. The hopper type feeder and the forced feeder combine to feed materials evenly and orderly, and the unloading is unobstructed, without manual feeding.
2. The screws and barrels of the main and auxiliary machines of the PE film granulator are treated with high temperature nitriding, which is more wear-resistant than the ordinary screw and barrel, and has twice the service life.
3. Automatically change the screen die without stopping the machine, realize one-key screen change, which is faster.
4. The supporting cleaning equipment of this PE film granulation line has realized multiple processes, repeated rinsing, and solved the problem of difficult cleaning and slagging of sand, stones and grass in the PE film recycling material. Especially for the recycled waste agricultural film, the effect is remarkable.

PE Film Granulation System Application:

PE Film Granulation System-fangsheng

PE Film Granulation System Video:

PE Film Granulation System Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

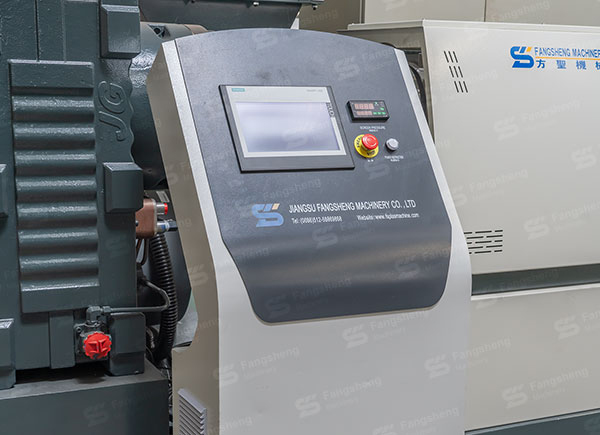

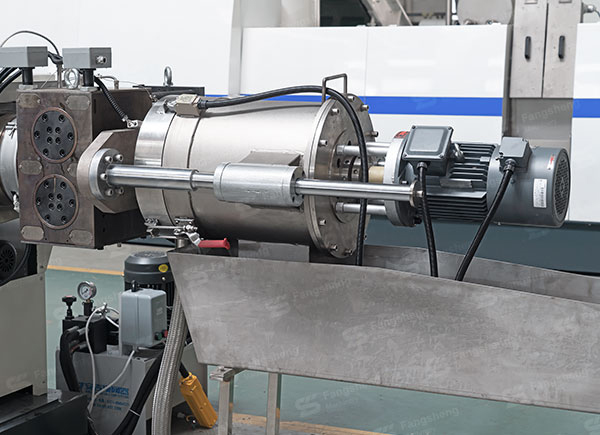

PE Film Granulation Machine Detail:

PE Film Granulation System-fangsheng
Detail 1
PE Film Granulation System-fangsheng
Detail 2
PE Film Granulation System-fangsheng
Detail 3
PE Film Granulation System-fangsheng
Detail 4
PE Film Granulation System-fangsheng
Detail 5
PE Film Granulation System-fangsheng
Detail 6
