PE Film Pelletizer Equipment

PE Film Pelletizer Equipment Description:

This type of  PE film pelletizer equipment combines the conventional pelletizing production line with the feed of the compactor (agglomerate), which greatly improves the efficiency. The film will be semi-melted and become a higher density, and then sent to the heating screw. If compared with the same screw size of a conventional pelletizing production line, the use of a compactor system can greatly increase productivity. Special screw design, vacuum degassing system and strict filtration system, excellent granulation quality, low moisture and no bubbles. Water ring cutting system is our advantage, it can cut PE film and PP woven material.

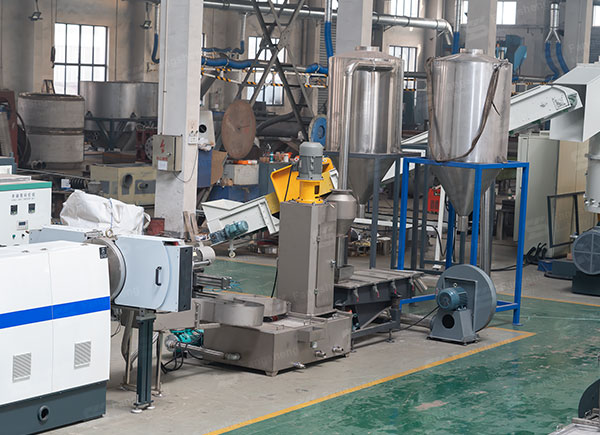

PE Film Pelletizer Equipment-fangsheng





PE Film Pelletizer Equipment Features:

1.The PE film pelletizer machine is automated from feeding to discharging particles.
2. Low cost of use after redesign: Now this PE film pelletizer system is more economical on both power supply and water. In the long service life of this machine, it can save a lot of energy.
3. The PE film pelletizer line is directly cut by water ring on the die. It can be horizontal or vertical water ring. After the water is cooled, it enters the centrifugal dehydrator, and then is sent to the storage bin by the fan without the problem of wire breakage.



PE Film Pelletizer Equipment Application:

PE Film Pelletizer Equipment-fangsheng



PE Film Pelletizer Equipment Video:



PE Film Pelletizer Machine Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PE Film Pelletizer Machine Detail:

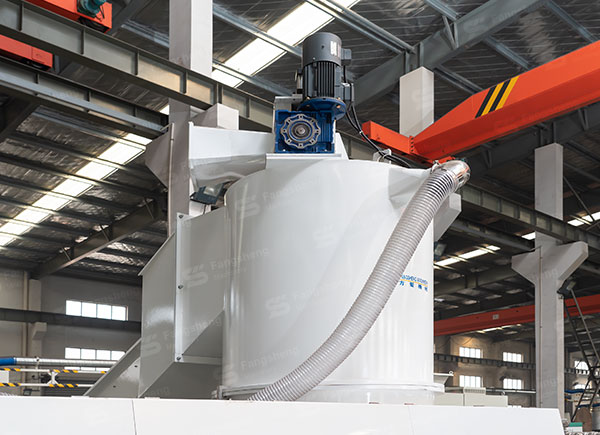

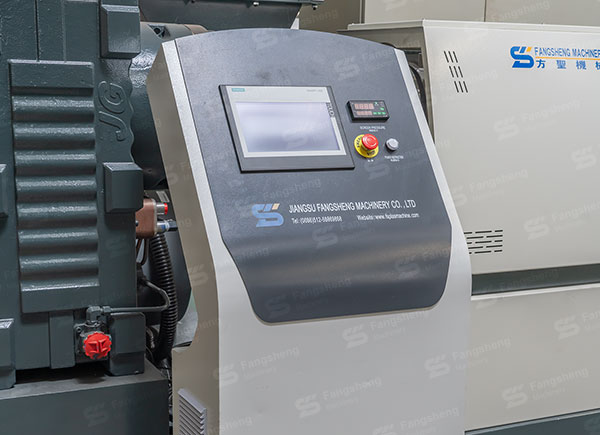

PE Film Pelletizer Equipment-fangsheng
Detail 1
PE Film Pelletizer Equipment-fangsheng
Detail 2
PE Film Pelletizer Equipment-fangsheng
Detail 3
PE Film Pelletizer Equipment-fangsheng
Detail 4
PE Film Pelletizer Equipment-fangsheng
Detail 5
PE Film Pelletizer Equipment-fangsheng
Detail 6
