PE Film Pelletizer System

PE Film Pelletizer System Description:

The PE film pelletizer system is mainly designed for processing PE.PP industrial waste, like poly bags , printed packing film , PP woven sack bags . This PE film pelletizer machine adopts European technology . The PE film pelletizer machine can also process recycled agriculture film . Since this PE film pelletizer machine is integrated with an agglomerator , so there is no need to use extra crusher to crush the big film pieces , but a pre-crushed material will be helpful to get a higher output . The barrel adopts vacuum degassing zone , so the PE film pelletizer machine can also process heavy printed film waste.

PE Film Pelletizer System-fangsheng

PE Film Pelletizer System Features:

1. The PE film pelletizer line has compactor to press the material into the screw,easy to operate and make sure the capacity.

2. With double stage single screw extruders,the plastic can be plasticized totally,keep the capacity steady and without air hole in the final granules.

3. With two different types of cutting way,”noodles” shape cutting and die face cutting(water loop).

4. With Non-stop hydraulic screen exchanger,you can exchange the screen when the PE film pelletizer system is running.

PE Film Pelletizer System Application:

PE Film Pelletizer System-fangsheng

PE Film Pelletizer Line Video:



PE Film Pelletizer Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

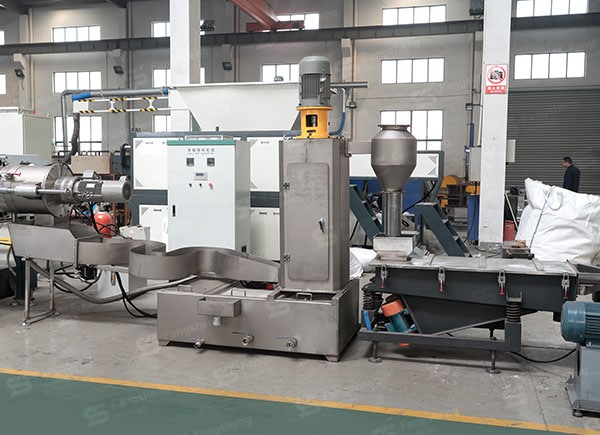

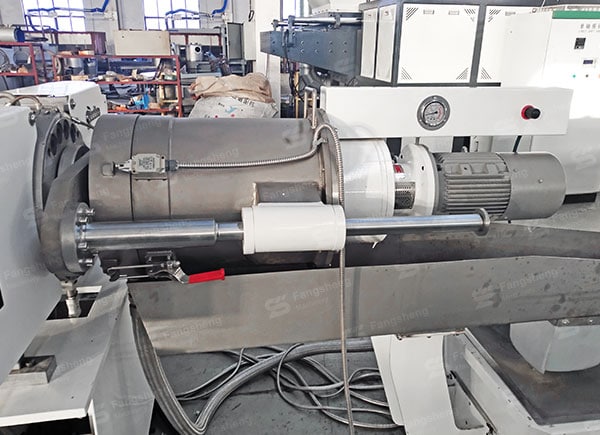

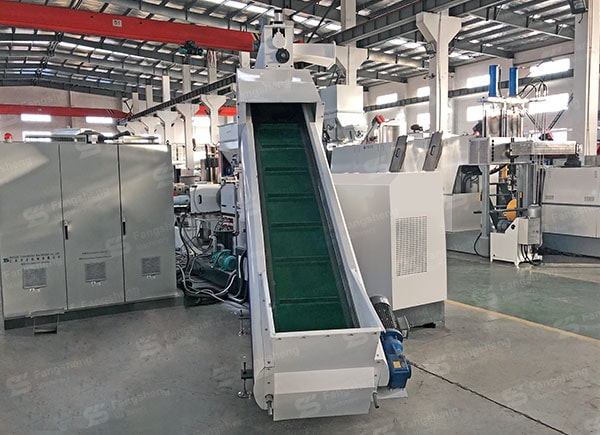

PE Film Pelletizer Line Detail:

PE Film Pelletizer System-fangsheng
Detail 1
PE Film Pelletizer System-fangsheng
Detail 2
PE Film Pelletizer System-fangsheng
Detail 3
