PE Film Pelletizing System

PE Film Pelletizing System Description:

The PE film pelletizing system is designed and manufactured by Fangsheng Machinery, widely used in waste plastic PE PP material, such as clean PE bag, clean HDPE, LDPE, LLDPE film sheet, etc.. The material through the transmission system, extrusion system, cooling system and collection system will become clean and perfect particles, reusable. You can choose between two or single stage extruders depending on the cleanliness of the material.

PE Film Pelletizing System-fangsheng

PE Film Pelletizing System Features:

1.Belt conveyor: feed PE film bag or sheet material into compactor. If there is some scrap iron, a metal detector may be needed.
2.Compaction machine: through the multi-blade crushing and forcing the flake particles into the extruder, to ensure efficient and stable production.
3.Single screw extruder (first stage) : high temperature plasticized material discharge hot air.
4.Hydraulic screen exchanger: filter material impurities.
5.PE film granulator Single screw extruder (stage 2) : further plasticize and filter materials at high temperatures.
6.Hydraulic screen exchanger: further filter material impurities, make production more stable.
7.Die-cutting machine: high speed rotary grain cutting.
8.Tank: cool precipitate with cold water.
9.Dehydrator: dry particles.
10.Blower: Blow the fine particles into the silo.
11.Storage bin: Collect particles.

PE Film Pelletizing System Application:

PE Film Pelletizing System-fangsheng

PE Film Pelletizing System Video:

PE Film Pelletizing Line Technical Parameter:


FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PE Film Pelletizing Line Detail:

PE Film Pelletizing System-fangsheng

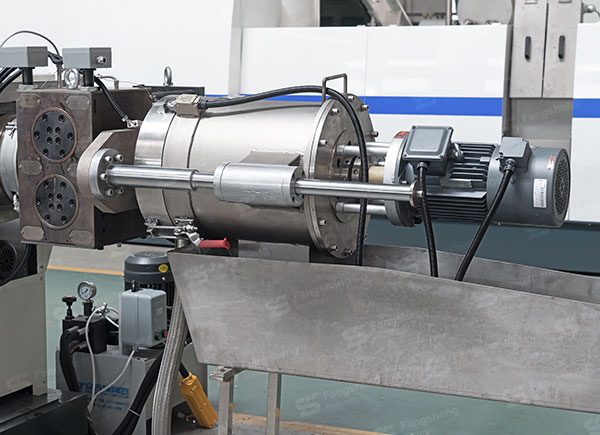

Detail 1
PE Film Pelletizing System-fangsheng

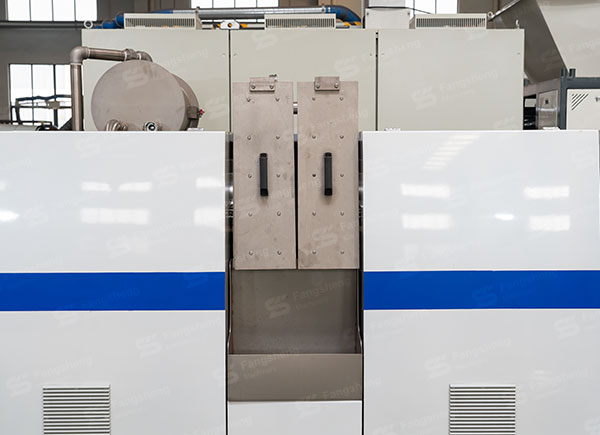

Detail 2
PE Film Pelletizing System-fangsheng
Detail 3
PE Film Pelletizing System-fangsheng
Detail 4
PE Film Pelletizing System-fangsheng
Detail 5
PE Film Pelletizing System-fangsheng
Detail 6
