PLA Degradable Film Pelletizing Machine

PLA Degradable Film Pelletizing Machine Description:

These PLA degradable film pelletizing machine are designed according to the principle of “toy bricks”. Screw structure, barrel setting, L/D or feed and exhaust mode, screen replacement, granulation mode and control mode can be optimally adjusted according to different material characteristics and requirements, taking into account the versatility of each versatility.

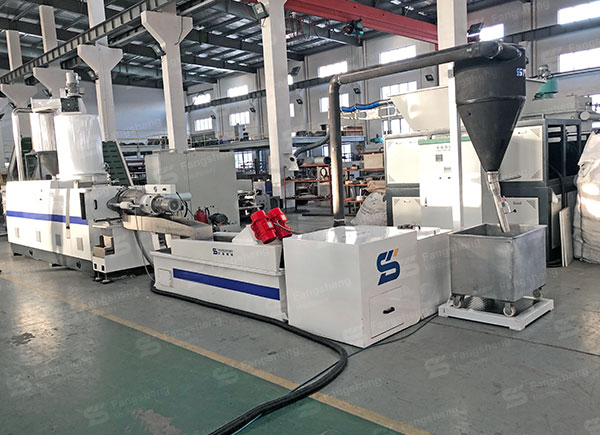

PLA Degradable Film Pelletizing Machine-fangsheng

PLA Degradable Film Pelletizing Machine Features:

1. Our PLA degradable film pelletizing line  is specially designed for processing residues and used biodegradable materials.
2. With our PLA degradable film pelletizing line, it is easy to operate and save labor, and can be recycled.
3. Considering the temperature of the biodegradable bag, we set the temperature of each part of the extruder to 140-175 degrees. The speed of the extruder is controlled at 100-150RPM. All designs are considered to be the properties of biodegradable plastics.

PLA Degradable Film Pelletizing Line Application:

PLA Degradable Film Pelletizing Machine-fangsheng

PLA Degradable Film Pelletizing Line Video:

PLA Degradable Film Pelletizing Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PLA Degradable Film Line Machine Detail:

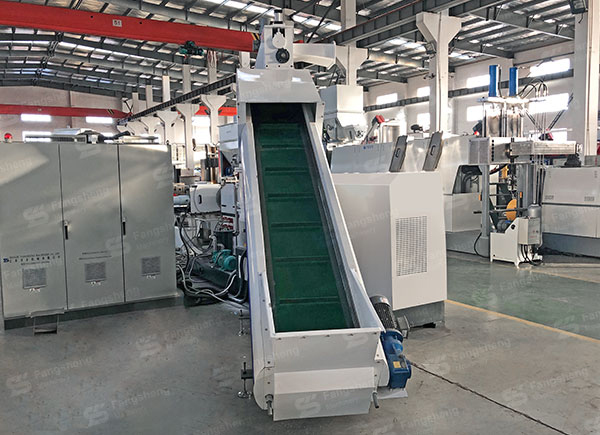

PLA Degradable Film Pelletizing Machine-fangsheng
Detail 1
PLA Degradable Film Pelletizing Machine-fangsheng
Detail 2
PLA Degradable Film Pelletizing Machine-fangsheng
Detail 3
