Plastic Bottle Washing Equipment

Plastic Bottle Washing Equipment Description:

The whole plastic bottle washing equipment is researched, designed and manufactured by our company, incorporating advanced technology, featuring high efficiency, stable work and high capacity. The waste plastic pet bottle crushing, cleaning and drying recycling line/machine/plant is widely used to process waste plastics such as PET/PVC/HDPE bottles, water bottles, cola bottles and PET plastic scrap crushed into flakes. Pet bottle recycling line is a crushing, cleaning and drying line. PET flakes are mainly used for fiber production of PET tape, PET flakes and other related PET products.
Plastic  Bottle Washing Equipment-fangsheng

Bottle Washing Equipment Instrucion:

Bottle washing equipment adopts the international advanced industry concept and technology to meet the waste plastic recycling at home and abroad. This production line can show “L” or “U” shape, and we can also customize the line according to the customer’s requirements.
1. We realize that one production line can process different kinds of raw materials.
2. Good quality of our machines (SUS-304 stainless steel, thickness over 4mm).
3. High quality of final product with low humidity (less than 1%) and low impurities (less than 50PPM).

Bottle Washing Equipment Video:

Bottle Washing Equipment Detail:

Plastic  Bottle Washing Equipment-fangsheng
High-speed Friction Washer
Plastic  Bottle Washing Equipment-fangsheng
Crusher Machine
Plastic  Bottle Washing Equipment-fangsheng

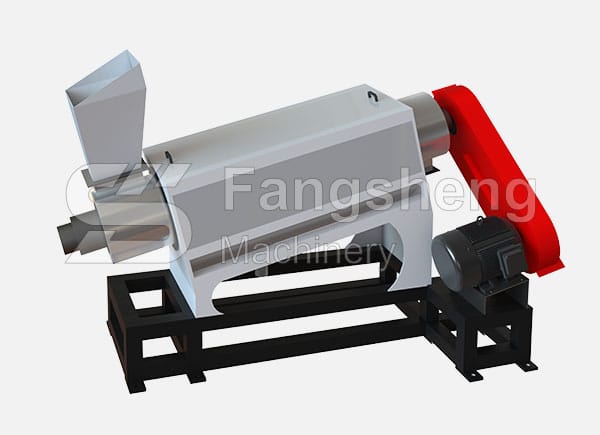

Dewatering Machine
Plastic  Bottle Washing Equipment-fangsheng
Steam washer
Plastic  Bottle Washing Equipment-fangsheng

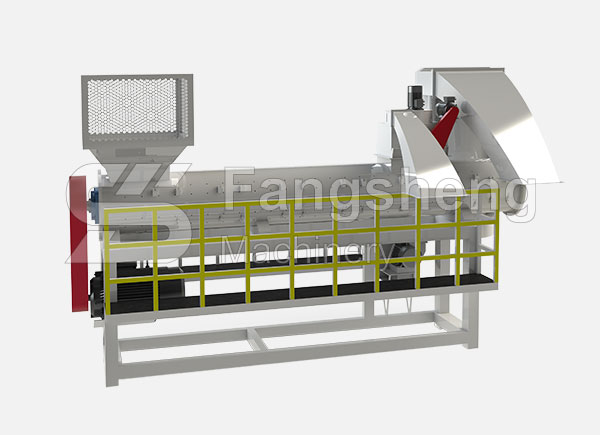

Label scfraping machine
Plastic  Bottle Washing Equipment-fangsheng
Label separator by air

Bottle Washing Equipment Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 3500*900*3000 According to customers standard
Label scraping machine 11 2600*1200*1800 0.6-1.0 3-5
Manual separating machine 2.2 6000*800*1200
Metal detectory 0.4 2200*1200*1500 3-5
Belt conveyer 2.2 3500*900*3000
Crusher 37 2200*2200*3000 0.6-1.0
Screw converor 3 2800*800*2600 3-5
High speed friction washer 30 3200*1400*2000 1-2 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 36 2800*800*2600 3-5
Steam washer 7.5 1800*1800*2700 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Dewatering machine 5.5 800*2200*2200 5
Drying system 11 3500*2200*2200 3-5
Label separater 4 800*1100*3800
Storage hopper 1500*1500*3800
Electric elements 2000*450*1780
