Plastic Granulator Machine

Plastic Granulator Machine Description:

Plastic granulator machine is especially good for the raw material which contain high moisture, high impurities. The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination. And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Plastic Granulator Machine-fangsheng

Plastic granulator adopts high efficient force feeder ensures stable high capacity material feeding, low power consumption. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.

Plastic Granulator Machine Consist:

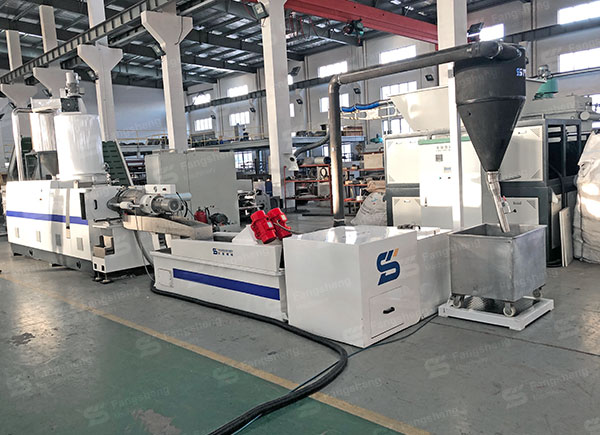

Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet

Plastic Granulator Application:

Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET,PA/Nylon, etc

Plastic Granulator Machine-fangsheng

Plastic Granulator Video:

Learn more about YouTube’s plastic granulator

Plastic Granulator Technical Parameter:
FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

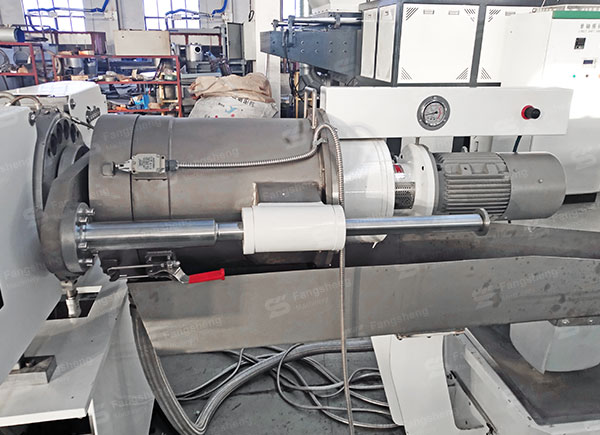

Plastic Granulator Detail:
Plastic Granulator Machine-fangsheng
Detail 1
Plastic Granulator Machine-fangsheng
Detail 2
Plastic Granulator Machine-fangsheng
Detail 3
