PP Barrels Recycling Washing Line

PP barrels recycling washing line is widely used to treat waste barrel and any scrap PP plastic broken into flakes. The PP barrels recycling washing machine is a crushing, washing, drying line. After finished, these clean flakes could be produced as fibre , straps and so on.

PP Barrels Recycling Washing Line-fangsheng

PP Barrels Recycling Washing Line Advantages:

1.PP barrels washing line has high automation level, try best to reduce your cost on labor and ensure high processing capacity: 500-3000kg/h.

2.All parts are made of 304 stainless steel (more than 3mm thickness); ensure no second pollution to flakes.

3.Good quality on final product, low humidity content(less than 2%) and less impurities (less 300PPM).

4.PP barrels washing line can process different material.

PP Barrels Recycling Washing Line Video:

PP Barrels Washing Line Flow Chart:

PP Barrels Recycling Washing Line-fangsheng

Belt conveyer → Wet crusher → Screw conveyer → Floating washer → Screw conveyer → High speed friction washer → Screw conveyer → Dewatering machine → Drying system1 → Silo for transition → Drying system2 → Storage hopper

PP Barrels Washing Line Application:

PP Barrels Recycling Washing Line-fangsheng

PP Barrels Washing Line Detail:

PP Barrels Recycling Washing Line-fangsheng

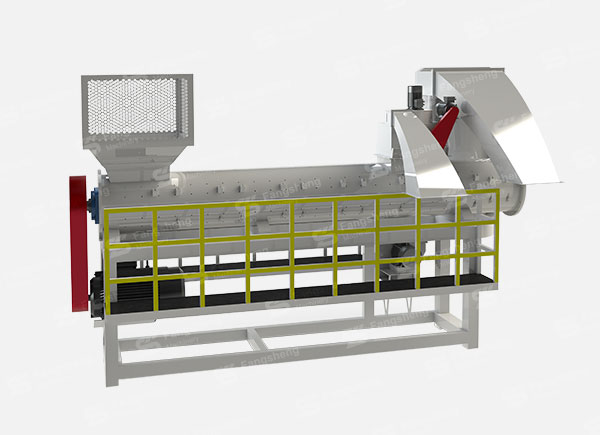

High-speed Friction Washer
PP Barrels Recycling Washing Line-fangsheng

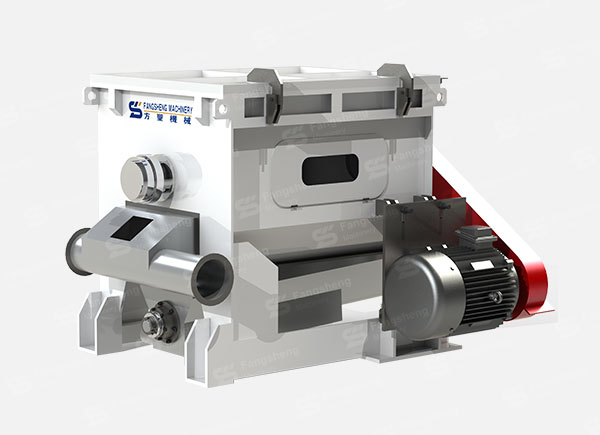

Crusher Machine
PP Barrels Recycling Washing Line-fangsheng

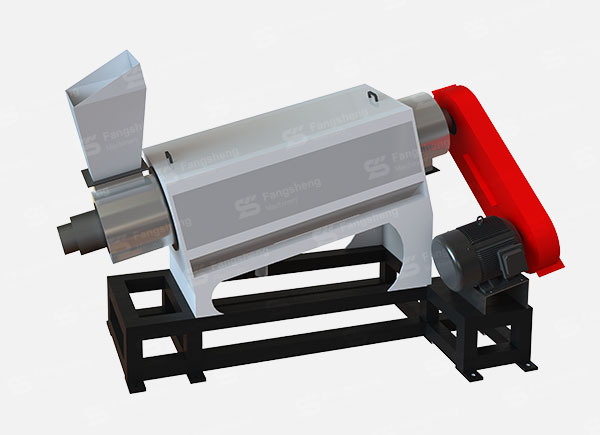

Dewatering Machine
PP Barrels Recycling Washing Line-fangsheng

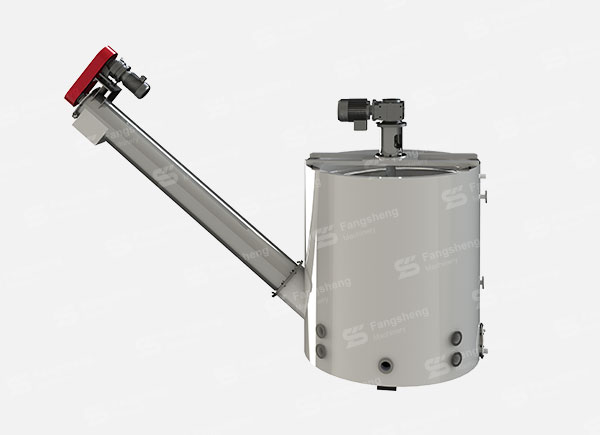

Steam washer
PP Barrels Recycling Washing Line-fangsheng
Label scfraping machine
PP Barrels Recycling Washing Line-fangsheng
Label separator by air

PP Barrels Washing Line Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 3500*900*3000 According to customers standard
Label scraping machine 11 2600*1200*1800 0.6-1.0 3-5
Manual separating machine 2.2 6000*800*1200
Metal detectory 0.4 2200*1200*1500 3-5
Belt conveyer 2.2 3500*900*3000
Crusher 37 2200*2200*3000 0.6-1.0
Screw converor 3 2800*800*2600 3-5
High speed friction washer 30 3200*1400*2000 1-2 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 36 2800*800*2600 3-5
Steam washer 7.5 1800*1800*2700 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Dewatering machine 5.5 800*2200*2200 5
Drying system 11 3500*2200*2200 3-5
Label separater 4 800*1100*3800
Storage hopper 1500*1500*3800
Electric elements 2000*450*1780
