PP Film Granulation Equipment

PP Film Granulation Equipment Description:

This PP film granulation equipment which is suitable for many kinds waste plastic materials recycling and making pellet, such as PP Film,bags,clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted. And PP film granulating machine also has very developed design, makes sure this PP film granulating equipment has a long working life and economical efficiency in using. You can choose use single stage or double stage granulating machine according to how clean of you material; Also you can choose the cooling cutting system or die-face hot cutting system.

PP Film Granulation Equipment-fangsheng



PP Film Granulation Equipment Features:

1. The main motor, plastic granulator and tractor operators adopt a frequency conversion control system, which is convenient to adjust, reliable, stable, and low energy consumption.
2. The extruder screw adopts a special design, the raw material plasticization effect is better, and the production is stable.
3. The PP film granulation equipment has high efficiency and is easy to install and maintain.
4. Adopt advanced components of world-renowned brands in pneumatic parts, electrical parts and operating parts.
5. The entire production line has a high degree of automation and is a fully automatic assembly line. As long as someone adds waste plastic in the front, and someone at the back receives the pelletized product, it can realize the direct transformation from waste plastic to pelletized product.

PP Film Granulation Equipment Application:

PP Film Granulation Equipment-fangsheng

PP Film Granulation Machine Video:

PP Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

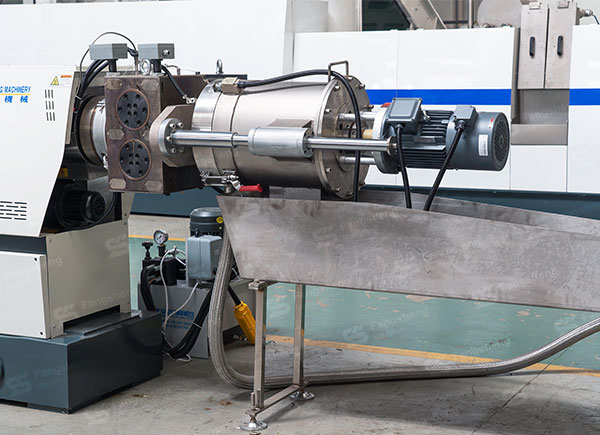

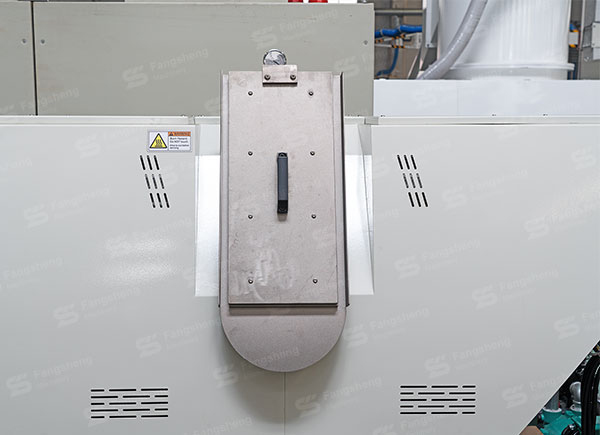

PP Film Granulation Machine Detail:

PP Film Granulation Equipment-fangsheng
Detail 1
PP Film Granulation Equipment-fangsheng
Detail 2
PP Film Granulation Equipment-fangsheng
Detail 3
PP Film Granulation Equipment-fangsheng
Detail 4
PP Film Granulation Equipment-fangsheng
Detail 5
PP Film Granulation Equipment-fangsheng
Detail 6
