PP Film Granulator Line

PP Film Granulator Line Description:

PP film granulator line is mainly used for waste polyethylene (PE) such as: plastic film, convenient bag, greenhouse film, liner bag, packaging film, etc. or waste polypropylene (PP) such as: woven bag, space bag, cement packaging bag, Tons of bags and so on. After extrusion, cooling, pelletizing, equipment to produce plastic pellets, the pellets produced are used in film blowing, bag making, wire drawing, injection molding and other industries.

PP Film Granulator Line-fangsheng



PP Film Granulator Line Features:

1. The entire PP film granulator machine has a high degree of automation. PP film granulator line is a fully automatic production line. Only one person needs to feed materials to the conveyor belt, realizing the direct transformation from waste plastics to finished pellets;
2. The entire PP film granulator  machine is continuously improved on the basis of advanced technology at home and abroad, with reasonable design and beautiful appearance, and the parts in contact with materials are made of stainless steel;
3. The finished pellets are of high quality, without bubbles, and are full and round; they are beautiful in appearance, with a disc-like shape, and the size and thickness can be adjusted;
4. The pelletizing line is directly cut by the water ring on the die, either horizontal or vertical water ring. After cooling, the water enters the centrifugal dehydrator, and then is sent to the storage bin by the fan without the problem of wire breakage;
5. There is a drainage port and a vacuum pump on the barrel of the granulation line to drain and exhaust to ensure the quality of the particles;

PP Film Granulator Line Application:

PP Film Granulator Line-fangsheng



PP Film Granulator Line Video:



PP Film Granulator Equipment Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PP Film Granulator Equipment Detail:

PP Film Granulator Line-fangsheng

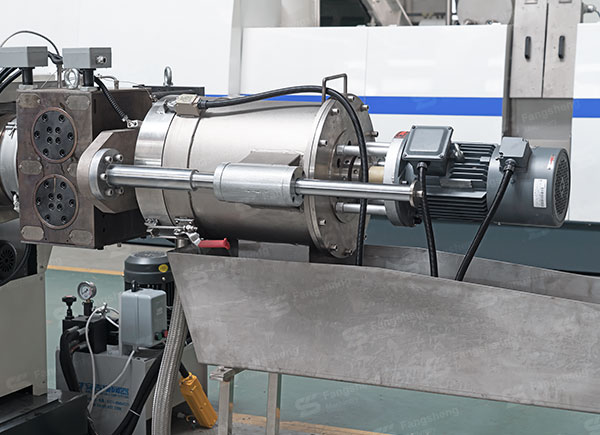

Detail 1
PP Film Granulator Line-fangsheng

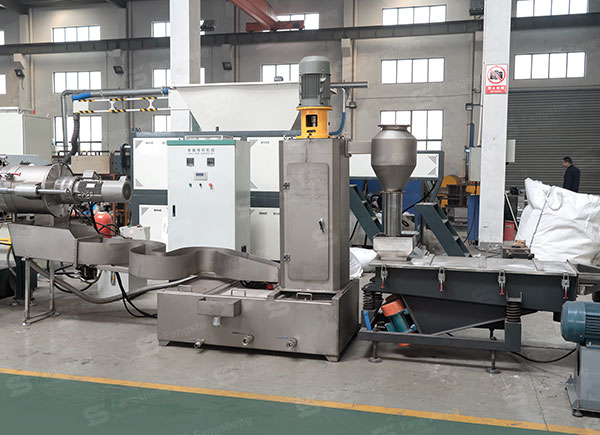

Detail 2
PP Film Granulator Line-fangsheng

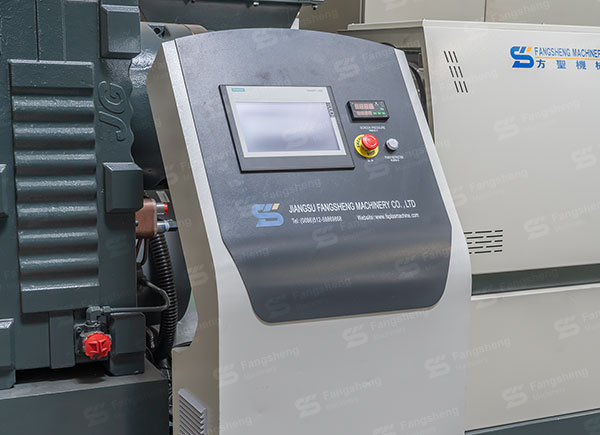

Detail 3
PP Film Granulator Line-fangsheng

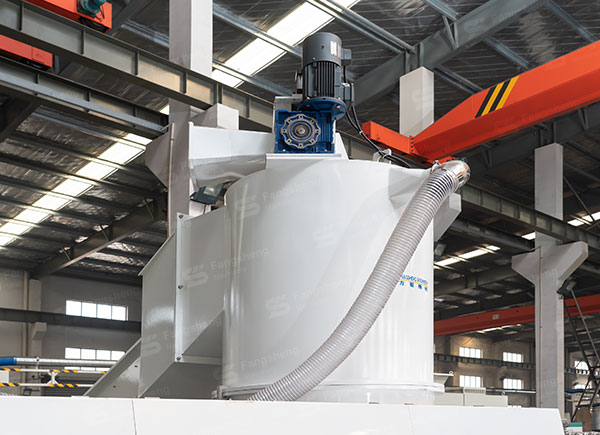

Detail 4
PP Film Granulator Line-fangsheng

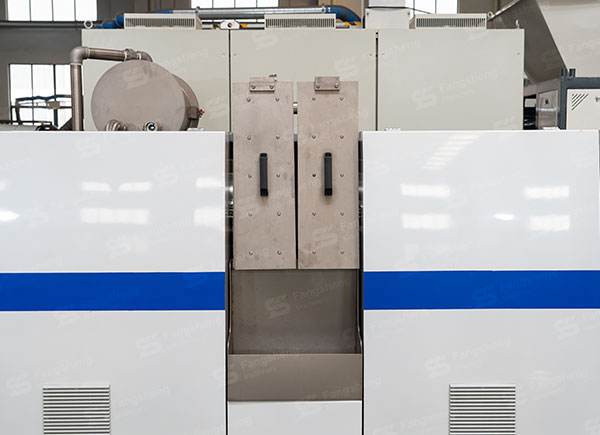

Detail 5
PP Film Granulator Line-fangsheng

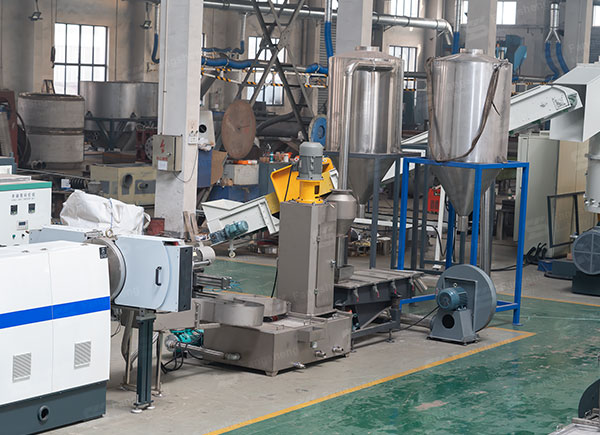

Detail 6
