PP Film Pelletizing System

PP Film Pelletizing System Description:

PP film pelletizing system is widely used for PP/PE plastic soft plastic. Such as shopping bags, packaging films, garbage bags, woven bags, non-woven bags and films, the PP film pelletizing machine will make them into small balls/particles.
The PP film pelletizing systeme has high degree of automation, low energy consumption, labor saving, power saving, water saving and convenient maintenance. With advanced design, concept and technology, the PP film pelletizing machine can be adapted to different waste plastic bags/films. The PP film pelletizing line can be arranged in “L”, “S” or “U” shape according to different workshops.

PP Film Pelletizing System-fangsheng



PP Film Pelletizing System Features:

1. The PP film pelletizing machine is equipped with an efficient forced feeder to ensure large-capacity feeding and low energy consumption.
2. Recycling and pelletizing of polyethylene (PE), polypropylene (PP), polystyrene (PS), polyvinyl chloride (pvc), PET, HDPE, ABS and other engineering plastics or ordinary plastics made of plastic pellets.
3. The main machine of the PP film pelletizing equipment is equipped with a fully automatic control cabinet and a PLC operating system. Simple operation and stable performance.
4. The water cavity with die cutter simplifies the process.



PP Film Pelletizing Line Application:

PP Film Pelletizing System-fangsheng



PP Film Pelletizing Line Video:



PP Film Pelletizing Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

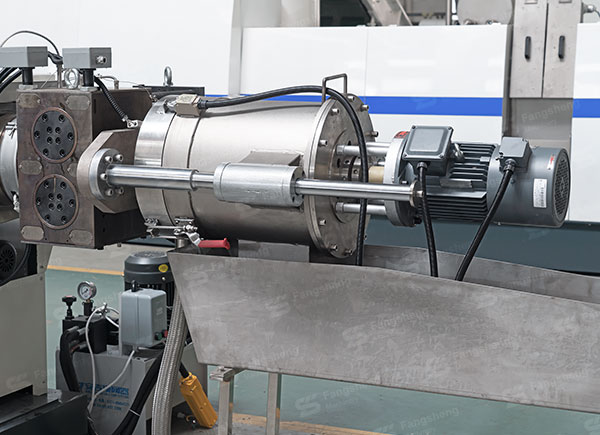

PP Film Pelletizing System Detail:

PP Film Pelletizing System-fangsheng
Detail 1
PP Film Pelletizing System-fangsheng
Detail 2
PP Film Pelletizing System-fangsheng
Detail 3
PP Film Pelletizing System-fangsheng
Detail 4
PP Film Pelletizing System-fangsheng
Detail 5
PP Film Pelletizing System-fangsheng
Detail 6
