PP Film Washing Machine

PP Film Washing Machine Advantages:

1. PP film washing machine is the key solution for recycling used plastic films and bags from different sources.
2. Different sources, including materials with high contamination levels. This complete line of washing machines can turn the collected dirty.
3. Polyethylene and polypropylene films, post-consumer bags into clean and dry film chips that can be used for further pelletizing.
4. The pelletized product can be used again to manufacture new plastic products. This line is controlled from start to finish by a central electrical control panel.
5. This production line is controlled from start to finish by a central electrical control panel.
PP Film Washing Machine-fangsheng

PP Film Washing Machine Features:

1. PP film washing line has good quality.
2. The capacity of the whole line is between 200kg/h and 2000kg/h.
3. High thickness SUS304 is used for the part of the washing machine contact material to ensure long service lifting time.
4. World famous brand parts are used in the production line – famous brand bearings, Siemens contactor, RKC temperature, ABB inverter, Siemens PLC control, etc.
5. The whole production line is certified by CE and ISO9001.

PP Film Washing Line Application:

PP Film Washing Machine-fangsheng

PP Film Washing Line Video:

PP Film Washing Line Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 4500*690 According to customers standard
Wet crusher 75 2-4
Friction washer 2.2*2 3000*300 1-2 3-5
Floating washer 2.2*2+1.5 4500*1300 2-4 3-5
Screw conveyor 2.2 2500*250 1-2 3-5
High-speed friction washer 30 2-4 3-5
Screw converor 2.2 2800*300 1-2 3-5
Dewatering machine 75 5
Drying system 36
Storage hopper for transition
Drying system 36
Storage hopper 2.2*2

PP Film Washing Line Detail:

PP Film Washing Machine-fangsheng

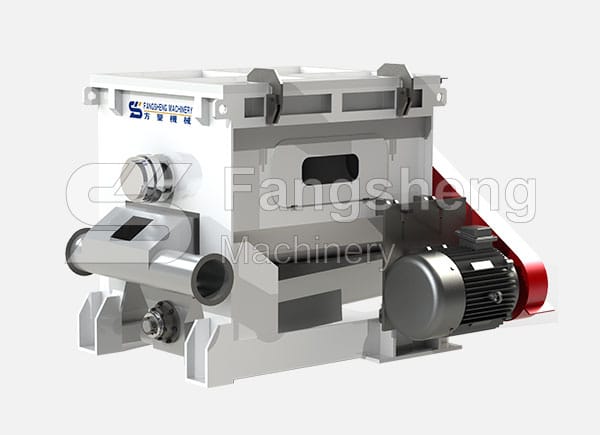

High-speed Friction Washer
PP Film Washing Machine-fangsheng

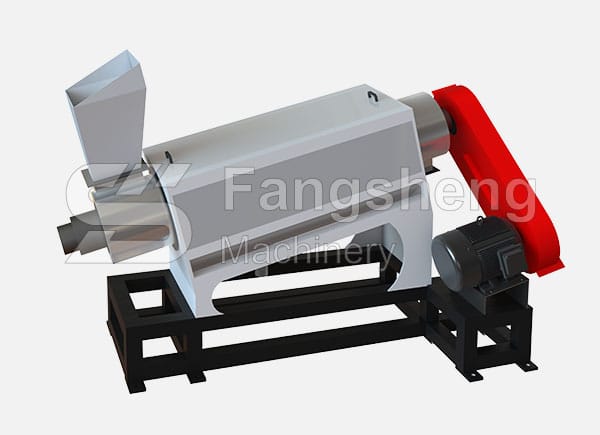

Dewatering Machine
PP Film Washing Machine-fangsheng

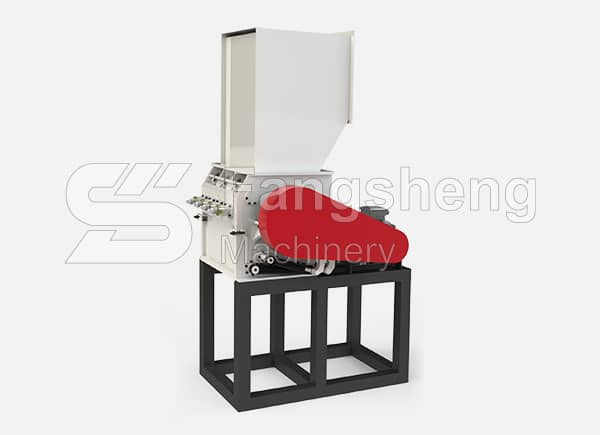

Crusher Machine
