PP Woven Bag Granulating Line

PP Woven Bag Granulating Line Description:

The difficulty in recycling and granulating PP woven bag granulating line in the sediment and impurities in the woven bags. The general crushing and washing machinery is difficult to clean completely, resulting in poor quality of the particles during the granulation process, resulting in serious wear of the screw barrel.

In response to the needs of such users, the woven bag granulating line developed by Fangsheng Machinery is equipped with a crusher in the crushing and washing links, which can initially clean up sediment and impurities, and then is equipped with a two-step cleaning tank for cleaning again. After cleaning, the scraps fully meet the requirements of granulation.

PP Woven Bag Granulating Line-fangsheng

The design and configuration of PP woven bag granulating machine aims to reduce labor costs as much as possible and realize mechanical automation. PP woven bag granulating production line can be equipped with 1-2 operators to realize the whole process of crushing, washing, granulating and packaging bags.

PP Woven Bag Granulating Line Application:

PP Woven Bag Granulating Line-fangsheng

PP Woven Bag Granulating Machine Video:

PP Woven Bag Granulating Machine Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

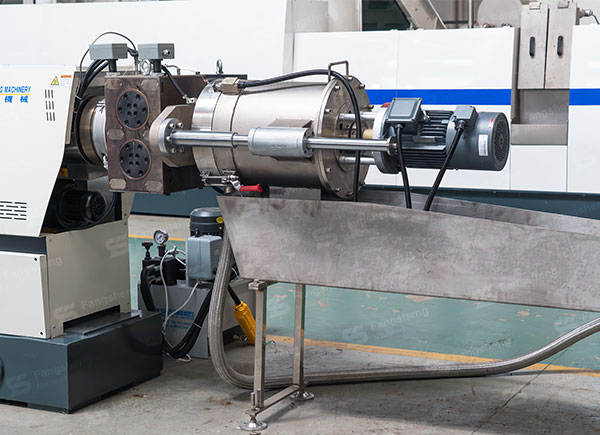

PP Woven Bag Granulating Machine Detail:

PP Woven Bag Granulating Line-fangsheng
Detail 1
PP Woven Bag Granulating Line-fangsheng
Detail 2
PP Woven Bag Granulating Line-fangsheng
Detail 3
PP Woven Bag Granulating Line-fangsheng
Detail 4
PP Woven Bag Granulating Line-fangsheng
Detail 5
PP Woven Bag Granulating Line-fangsheng
Detail 6
