HDPE Bottle Recycling Washing Line

HDPE Bottle Recycling Washing Line Description:

HDPE bottle recycling washing line takes dirty HDPE milk bottles and transforms them into clean HDPE flakes. The production capacity Fangsheng Machinery can make on the HDPE bottle washing line can be 500kg to 3000kg per hour.

HDPE Bottle Recycling Washing Line-fangsheng

HDPE bottle washing line has high automation level, try best to reduce your cost on labor. HDPE bottle washing line adopts friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.

HDPE Bottle Washing Line Features:

1. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.

2. HDPE bottle washing line allows the completely dry flakes can be collected and packed directly after being washed.

3. HDPE bottle recycling line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.

4. Fangsheng Machinery configures a pelletizing system based on HDPE flakes to produce new PET bottles.

HDPE Bottle Washing Line Application:

HDPE Bottle Recycling Washing Line-fangsheng

HDPE Bottle Washing Line Video:

Learn more about YouTube’s HDPE bottle washing line

HDPE Bottle Washing Line Detail:

HDPE Bottle Recycling Washing Line-fangsheng
High-speed Friction Washer
HDPE Bottle Recycling Washing Line-fangsheng
Crusher Machine
HDPE Bottle Recycling Washing Line-fangsheng

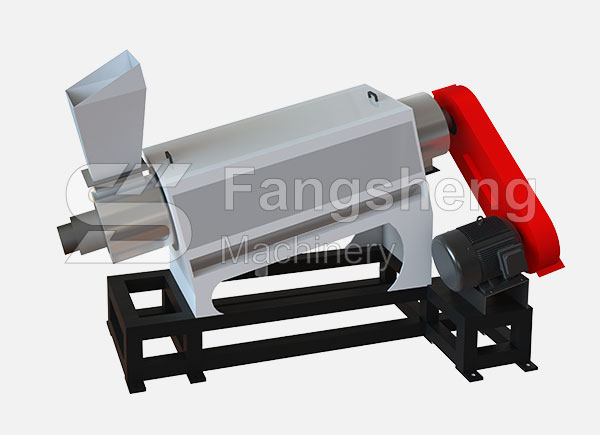

Dewatering Machine
HDPE Bottle Recycling Washing Line-fangsheng
Steam washer
HDPE Bottle Recycling Washing Line-fangsheng
Label scfraping machine
HDPE Bottle Recycling Washing Line-fangsheng
Label separator by air

HDPE Bottle Washing Line Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 3500*900*3000 According to customers standard
Label scraping machine 11 2600*1200*1800 0.6-1.0 3-5
Manual separating machine 2.2 6000*800*1200
Metal detectory 0.4 2200*1200*1500 3-5
Belt conveyer 2.2 3500*900*3000
Crusher 37 2200*2200*3000 0.6-1.0
Screw converor 3 2800*800*2600 3-5
High speed friction washer 30 3200*1400*2000 1-2 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 36 2800*800*2600 3-5
Steam washer 7.5 1800*1800*2700 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Dewatering machine 5.5 800*2200*2200 5
Drying system 11 3500*2200*2200 3-5
Label separater 4 800*1100*3800
Storage hopper 1500*1500*3800
Electric elements 2000*450*1780
