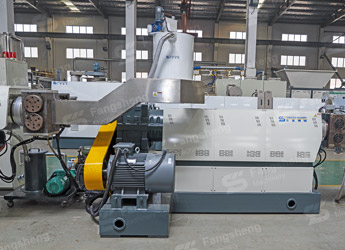

Plastic Film Pelletizing Line

This plastic film pelletizing line is designed specially by Fangsheng Machinery, which is mainly used for processing of waste plastic film (industrial packaging film, agricultural film, greenhouse film, beer package, bag, etc.), woven bags, agricultural convenience bag, PP fiber, PP no-woven fabrics,etc.

Plastic Film Pelletizing Line-fangsheng

Through belt conveyer convey the PP/PE Film to compactor.Then the material will be cutted, then forced into extruder, cutting, water flume,dewatering machine, lastly blowing into storage hopper. Based on your requirements, you can choose compactor single stage granulator or double stage granulator.

Plastic Film Pelletizing Machine Features:

1. The plastic film pelletizing machine capacity between 200kg/h-1000kg/h.

2. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.

3. World famous brand components applied on the pelletizing line- SKF bearing, Siemens contactor, Japan RKC temperature, ABB invertor, Siemens PLC control.

4. The plastic film pelletizing machine with CE certification, ISO9001 certification.

Plastic Film Pelletizing Machine Video:

Plastic Film Pelletizing Machine Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

Plastic Film Pelletizing Machine Detail:

Plastic Film Pelletizing Line-fangsheng
Detail 1
Plastic Film Pelletizing Line-fangsheng
Detail 2
Plastic Film Pelletizing Line-fangsheng
Detail 3
Plastic Film Pelletizing Line-fangsheng
Detail 4
Plastic Film Pelletizing Line-fangsheng
Detail 5
Plastic Film Pelletizing Line-fangsheng
Detail 6
