  • Double Stage Compactor Pelletizing Machine
PE PP Double Stage Compactor Pelletizing Machine
summary

Double stage compactor pelletizing line has features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, low-noise, low-power consumption.

Categories:

Category: HDPE LDPE PE PP Pelletizing Machine

Share:

PE PP Double Stage Compactor Pelletizing Machine Introduction:

PE PP double stage compactor pelletizing machine is used for plastic film, woven bag and so on recycling. Double stage compactor pelletizing line has features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, low-noise, low-power consumption.

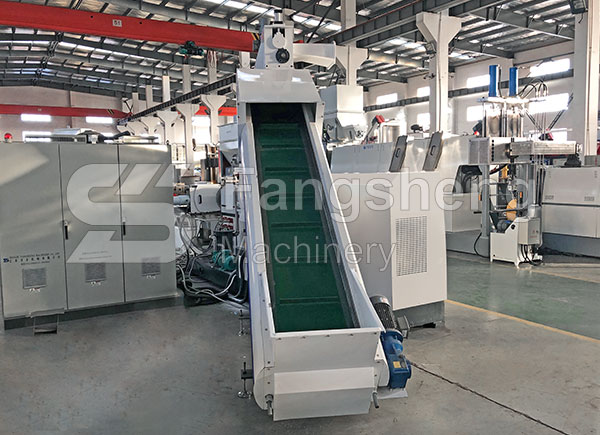

PE PP Double Stage Compactor Pelletizing Machine-fangsheng

PE PP Double Stage Compactor Pelletizing Machine Features:

1.The compactor pelletizing machine‘s electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated.

2.The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

3.Vacuum or common gas exhaust system, which fascinates getting rid of damp, waste gas, impurity, and ensure a more stable extrusion and more solid pellets.

Double Stage Compactor Pelletizing Line Application:

PE PP Double Stage Compactor Pelletizing Machine-fangsheng

Double Stage Compactor Pelletizing Line Video:

Double Stage Compactor Pelletizing Line Technical Parameter:

FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

Double Stage Compactor Pelletizing Line Detail:

PE PP Double Stage Compactor Pelletizing Machine-fangsheng
Detail 1
PE PP Double Stage Compactor Pelletizing Machine-fangsheng
Detail 2
PE PP Double Stage Compactor Pelletizing Machine-fangsheng
Detail 3
