Chemical Barrel Recycling Washing Line

The chemical barrel recycling washing line is used for washing and recycling of PE, PP, PVC barrels. Coordinating the washing recycling line with follow programmed work (granulating machine), and will make waste and dirty PE, PP, PVC barrels to be the PE, PP, PVC granule material and in order to producing new PE, PP, PVC materials.

This waste barrel recycling washing line consists of: conveyor, crusher (grinder), washing machine, put the feeder, squeezed dehydration machine, control cabinet and other components.

Chemical Barrel Recycling Washing Line-fangsheng

First of waste barrel sorting (classification), broken (torn), then friction wash, rinse, and finally squeezed drawing granulation machine dehydration after drying, granulation.

The waste barrel washing production line from scrap to finished product, and efficient cleaning of waste plastics. Simple operation, high efficiency, environmental protection, energy saving.

Chemical Barrel Recycling Washing Line Video:

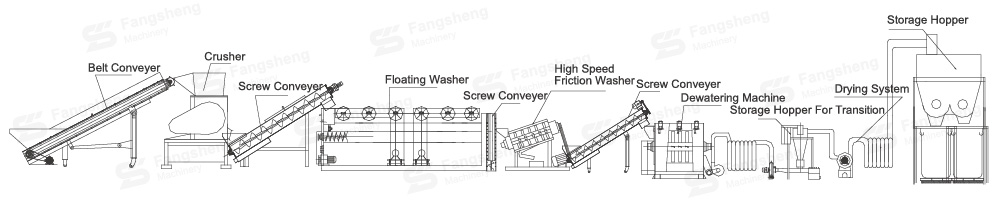

Chemical Barrel Recycling Washing Line Flow Chart:

Chemical Barrel Recycling Washing Line-fangsheng

Belt conveyer → Wet crusher → Screw conveyer → Floating washer → Screw conveyer → High speed friction washer → Screw conveyer → Dewatering machine → Drying system1 → Silo for transition → Drying system2 → Storage hopper

Chemical Barrel Washing Line Application:

Chemical Barrel Recycling Washing Line-fangsheng

Chemical Barrel Washing Line Detail:

Chemical Barrel Recycling Washing Line-fangsheng
High-speed Friction Washer
Chemical Barrel Recycling Washing Line-fangsheng
Crusher Machine
Chemical Barrel Recycling Washing Line-fangsheng
Dewatering Machine
Chemical Barrel Recycling Washing Line-fangsheng
Steam washer
Chemical Barrel Recycling Washing Line-fangsheng
Label scfraping machine
Chemical Barrel Recycling Washing Line-fangsheng
Label separator by air

Chemical Barrel Washing Line Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 3500*900*3000 According to customers standard
Label scraping machine 11 2600*1200*1800 0.6-1.0 3-5
Manual separating machine 2.2 6000*800*1200
Metal detectory 0.4 2200*1200*1500 3-5
Belt conveyer 2.2 3500*900*3000
Crusher 37 2200*2200*3000 0.6-1.0
Screw converor 3 2800*800*2600 3-5
High speed friction washer 30 3200*1400*2000 1-2 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 36 2800*800*2600 3-5
Steam washer 7.5 1800*1800*2700 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Floating washer 3*2 5200*1700*2200 0.5-1.5 3-5
Screw conveyer 3 2800*800*2600 3-5
Dewatering machine 5.5 800*2200*2200 5
Drying system 11 3500*2200*2200 3-5
Label separater 4 800*1100*3800
Storage hopper 1500*1500*3800
Electric elements 2000*450*1780
