HDPE Film Granulating Line

HDPE Film Granulating Line Description:

Fangsheng HDPE film granulating line is used to granulate from cleaned or cleaned PP, PE film. According to different materials and different customer needs, we provide customers with different options, such as different L/D ratios, multiple exhaust screw structures, single-stage and two-stage designs, and different pelletizing die heads. The HDPE film granulating machine capacity is 80~1000kg/h. The pellets we obtain from the HDPE film pelletizer can be directly used for sales, pelletizing, injection molding, extrusion and blown film.

HDPE Film Granulating Line-fangsheng

HDPE Film Granulating Line Features:

1. The characteristics of high output and low energy consumption, equipped with large torque reducer and motor, and the screw is specially designed and processed. No dead ends, no iron plugs, effectively improving production capacity and enhancing plasticity.
2. The HDPE film granulating machine adopts a reasonable design, the production volume has also been greatly improved, the performance and price of the finished product are relatively high, and the maintenance time is reduced, so the user’s maintenance cost is also reduced.
3. High-quality electrical and driving equipment make the HDPE film granulating machine safer and more reliable during use.
4. The screw part is carefully designed, and the whole machine and each part are reasonably configured.
5. The screw is designed according to the characteristics of the material, so the HDPE film granulating machine has high efficiency and fast speed. The product produced has a strong gloss and large particle size, which increases the configuration of the whole HDPE film granulating machine and increases the service life of the equipment.

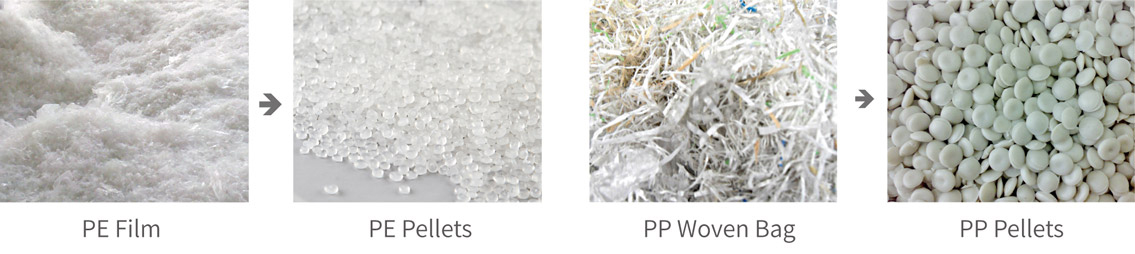

HDPE Film Granulating Line Application:

HDPE Film Granulating Line-fangsheng

HDPE Film Granulating Line Video:

HDPE Film Granulating Line Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

HDPE Film Granulating Machine Detail:

HDPE Film Granulating Line-fangsheng
Detail 1
HDPE Film Granulating Line-fangsheng
Detail 2
HDPE Film Granulating Line-fangsheng
Detail 3
HDPE Film Granulating Line-fangsheng
Detail 4
HDPE Film Granulating Line-fangsheng
Detail 5
HDPE Film Granulating Line-fangsheng
Detail 6
