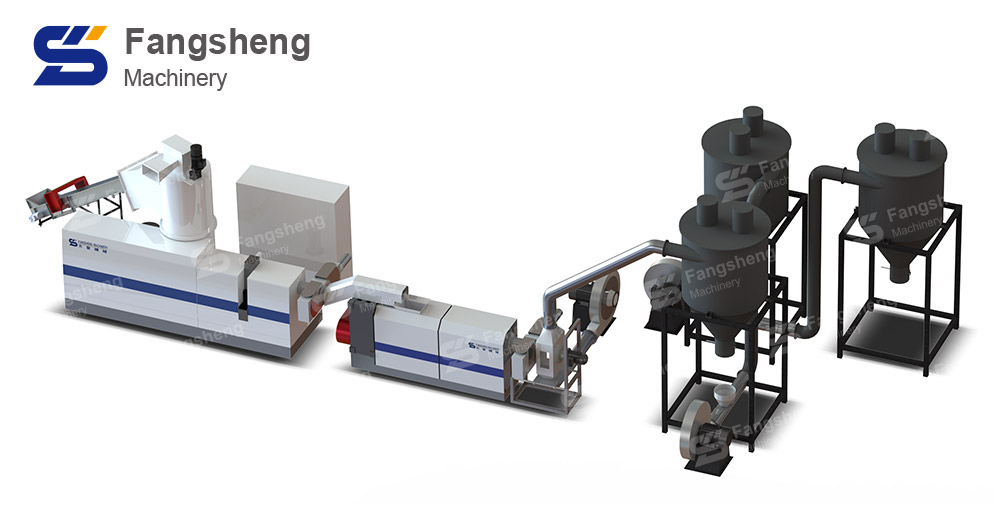

PBAT Degradable Film Granulation Line

PBAT Degradable Film Granulation Line Description:

This PBAT degradable film granulation line which is suitable for many kinds waste plastic materials recycling and making pellet, such as  PLA film, clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted. And also has very developed design, makes sure this PBAT degradable film granulation machine has a long working life and economical efficiency in using.You can choose use single stage or double stage pelletizing machine according to how clean of you material; also you can choose the cooling cutting system or die-face hot cutting system.

PBAT Degradable Film Granulation Line-fangsheng

PBAT Degradable Film Granulation Line Features:

1. Specially designed molds for the PBAT degradable film granulation machine: Due to the material characteristics and our rich manufacturing experience, the size of all mold holes are specially designed.

2. The barrel and screw of the PBAT degradable film granulation machine: special materials (38CrMoA1A and bi-alloy) and the hardness treatment of the screw and barrel make the extruder have good wear resistance.

3. The cutting method of the PBAT degradable film granulation machine: pineapple cutter is used for cutting the surface, and the die surface cutter is used for the water ring cutting method.

4. Feeding mode of the PBAT degradable film granulation machine: the specially designed forced feeder, side feeder and compactor can push the material into the extruder efficiently. Guarantee good machine capacity.

5. Degassing of the PBAT degradable film granulation machine: The special exhaust design can effectively discharge water and waste gas, ensuring that the final plastic particles have a smooth surface, no water, no bubbles, and good quality.

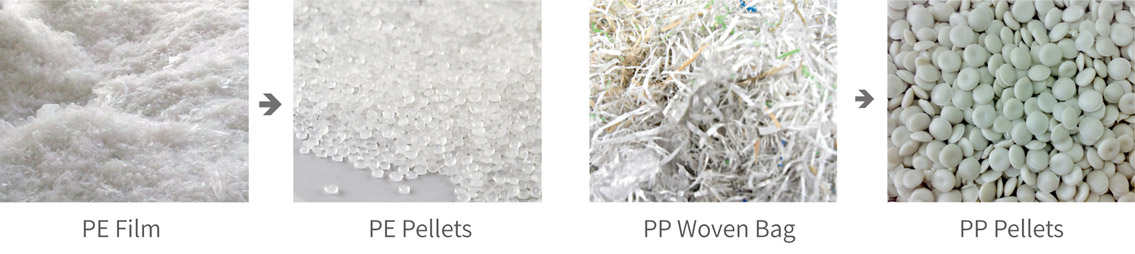

PBAT Degradable Film Granulation Line Application:

PBAT Degradable Film Granulation Line-fangsheng

PBAT Degradable Film Granulation Line Video:

PBAT Degradable Film Granulation Machine Technical Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PBAT Degradable Film Granulation Machine Detail:

PBAT Degradable Film Granulation Line-fangsheng
Detail 1
PBAT Degradable Film Granulation Line-fangsheng
Detail 2
PBAT Degradable Film Granulation Line-fangsheng
Detail 3
