PBAT Degradable Film Granulation Machine

PBAT Degradable Film Granulation Machine Description:

The PBAT degradable film granulation machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller.This raw materials like waste films of PBAT and PLA are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The granulator is easy to change the screen, adopts the exhaust design, and has the characteristics of high productivity and low energy consumption.

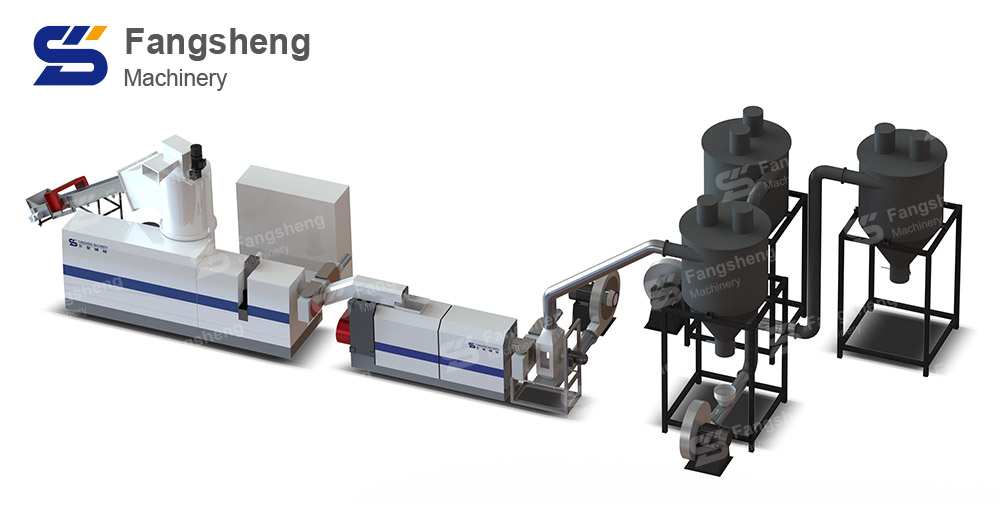

PBAT Degradable Film Granulation Machine-fangsheng

PBAT Degradable Film Granulation Machine Features:

1. Specially designed professional plasticizing screw for degradable materials, combined with advanced production technology, can effectively avoid fish eyes on the film.
2. The PBAT degradable film granulation system adopts touch screen, PLC control system and specially designed safety switch, which makes the operation more convenient and safer.
3. The product produced by our PBAT degradable film granulation line is a high-end biodegradable material with low carbon and environmental protection characteristics.

PBAT Degradable Film Granulation Machine Application:

PBAT Degradable Film Granulation Machine-fangsheng

PBAT Degradable Film Granulation System Video:

PBAT Degradable Film Granulation System Parameter:



FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000

PBAT Degradable Film Granulation System Detail:

PBAT Degradable Film Granulation Machine-fangsheng
Detail 1
PBAT Degradable Film Granulation Machine-fangsheng
Detail 2
PBAT Degradable Film Granulation Machine-fangsheng
Detail 3
