Plastic Film Crushing Washing Line

Plastic Film Crushing Washing Line Description:

Plastic film washing line is widely used in recycling PP PE films and bags, such as agriculture film, packing film, plastic bags, PP woven bags, jumbo bags and so on. Plastic film washing line include plastic crushing washing machine, squeezing pelletizer and plastic pelletizing machine.

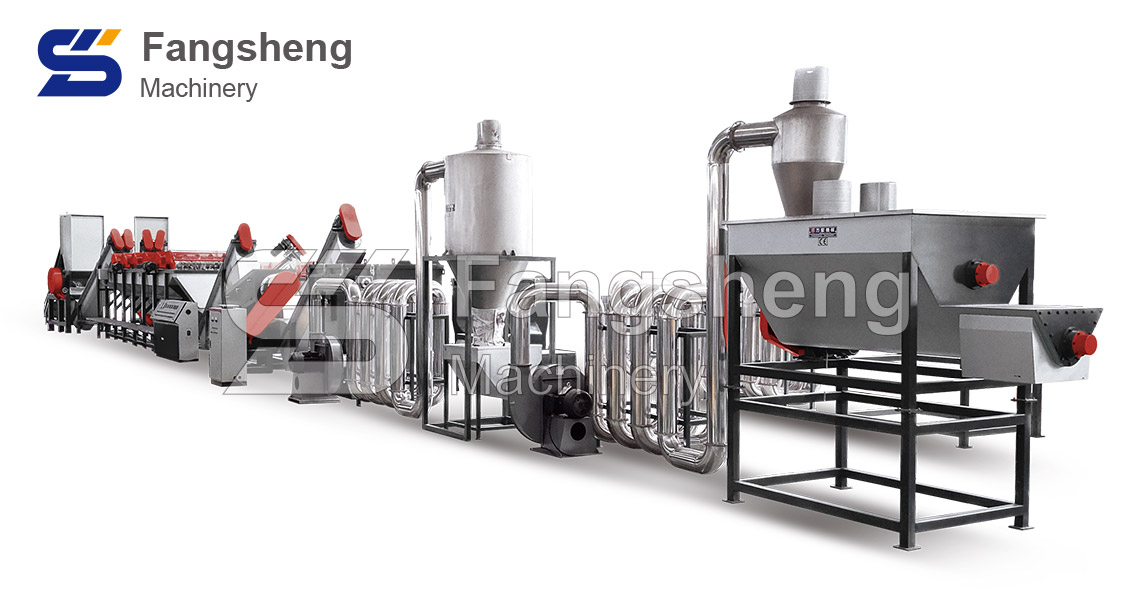

Plastic Film Crushing Washing Line-fangsheng

Plastic film washing line include belt conveyer – wet crusher – screw loader – friction washer – float washer – squeezing pelletizer – pelletizing line. Plastic film washing line output could be 300-1000kg/h.

The whole plastic film washing line is with automatic controlling, compact structure arrangement, high production efficiency, nice cleanness, etc. After drying the water content can reach 5-8%.

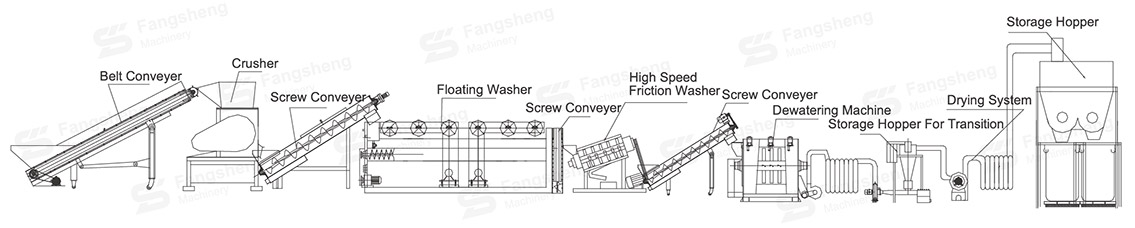

Plastic Film Washing Line Flow Chart:

Plastic Film Crushing Washing Line-fangsheng

Plastic Film Washing Line Application:

Plastic Film Crushing Washing Line-fangsheng

Plastic Film Washing Line Video:

Learn more about YouTube’s plastic film washing line

Plastic Film Washing Line Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyor 2.2 4500*690 According to customers standard
Wet crusher 75 2-4
Friction washer 2.2*2 3000*300 1-2 3-5
Floating washer 2.2*2+1.5 4500*1300 2-4 3-5
Screw conveyor 2.2 2500*250 1-2 3-5
High-speed friction washer 30 2-4 3-5
Screw converor 2.2 2800*300 1-2 3-5
Dewatering machine 75 5
Drying system 36
Storage hopper for transition
Drying system 36
Storage hopper 2.2*2

Plastic Film Washing Line Detail:

Plastic Film Crushing Washing Line-fangsheng
Dewatering Machine
Plastic Film Crushing Washing Line-fangsheng
High-speed Friction Washer
Plastic Film Crushing Washing Line-fangsheng
Crusher Machine
