Plastic films are widely used in packaging, agriculture, industry and other fields, and the resulting waste plastic films have become one of the main sources of “white pollution”. The emergence of plastic film recycling granulators has realized the resource utilization of waste plastic films, which not only solves the pollution problem, but also creates considerable economic value, becoming an important equipment for promoting the development of circular economy.
I. Plastic Film Recycling: Core Prospects and Advantages
The recycling and utilization of plastic films has significant value advantages.
(I) Environmental friendly
From the environmental protection perspective, waste plastic films are difficult to degrade naturally, while recycling and granulation can reduce more than 90% of plastic waste pollution.
(II) Cost saving
From the economic perspective, the recycled granules made from recycled plastic films can replace primary plastics for the production of plastic products, greatly reducing the raw material costs of enterprises.
II. Plastic Film Granulator Machine: Detailed Operation Process

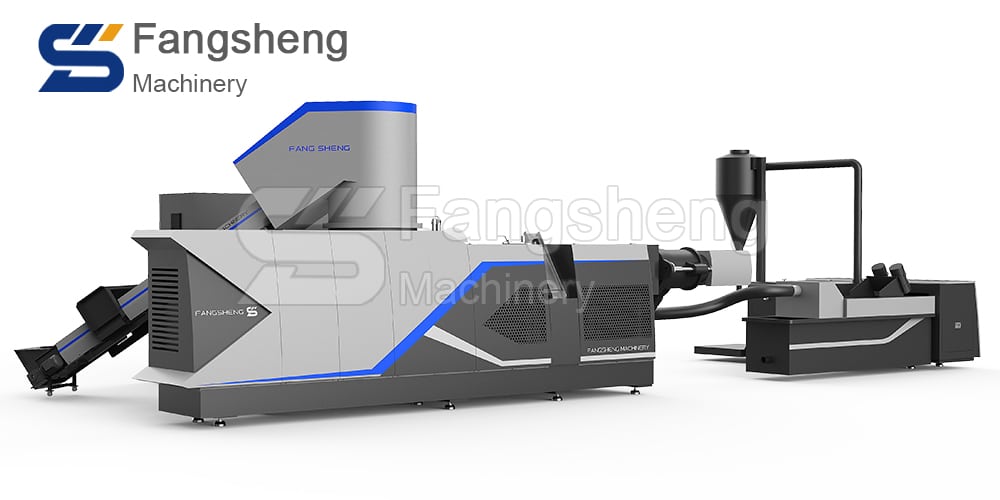

Plastic Film Granulator Machine is designed and manufactured by Fangsheng Machinery.
It effectively resolves challenges such as the loose nature of waste plastic films, difficulties in feeding, and uneven granulation.
It is suitable for recycling PP, PE and other types of waste plastic films, with full automation. The simplified process is as follows:
1. Feeding, Sorting and Impurity Removal:
The belt conveyor feeds materials, the metal detector detects and removes metal impurities to ensure the purity of the fed materials.
2. Dense Chamber Crushing and Compacting:
The plastic film enters the dense chamber, is cut into fragments by blades, preheated and dried by friction, and then extruded into dense material lumps to ensure stable feeding.
3. Melting, Plasticizing and Filtering:
The material lumps are sent to the extruder to be melted into melt, degassed and decontaminated by double vacuum, and then passed through a hydraulic screen changer to ensure the melt is pure and free of impurities.
4. Water Ring Granulation Molding:
The melt is extruded through the die head, the cutter rotates at high speed close to the die surface for cutting, and the annular water flow cools synchronously to form smooth and uniform granules, eliminating the traction and drying links.
5. Dehydration and Drying:
The granules enter the dehydration system with water flow, and are dehydrated by centrifugation and air-dried
6. Screening and Packaging:
The vibrating screen screens out unqualified granules, and the qualified granules are sent to the silo by air conveying, and then quantitatively packaged to be used.
