POF Film Pelletizing Line

POF Film Pelletizing Line Description:

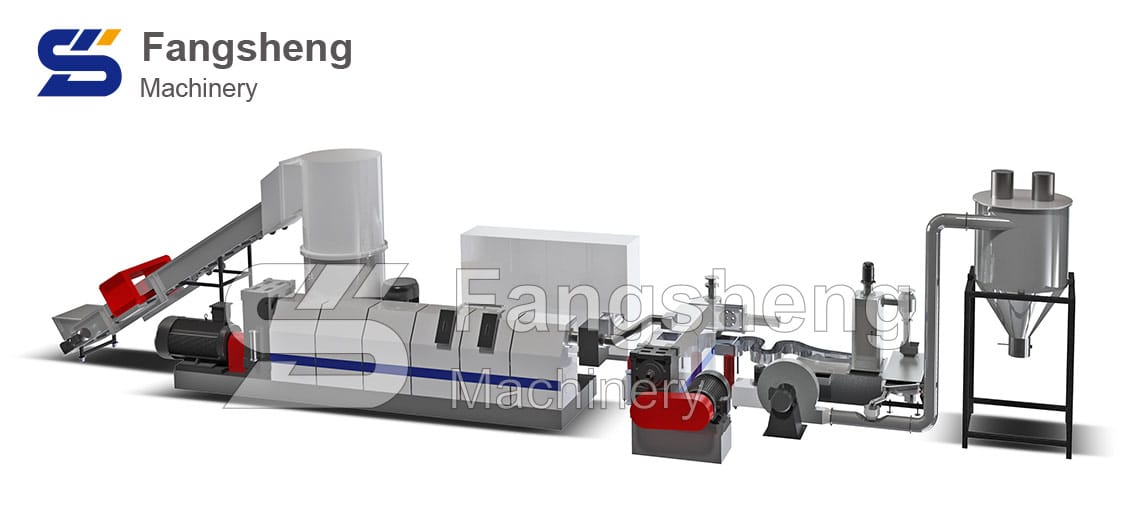

POF film pelletizing line is special equipment for the film recycling granulating, equipped with compactoring machine which could pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, ensure high capacity and save labor.

POF film pelletizing machine adopts water ring pelletizing which is easier to operate, and the shape and appearance of granule is good.

POF Film Pelletizing Line-fangsheng

POF film pelletizing machine has two vacuum exhausting mouth on extruder barrel which can fully vent the moisture in the material and the final granule quality will be very perfect.

At the end of screw barrel, equipped with double post fast speed hydraulic non -stop screen changer which can effectively filter out the dirty in the plastic melt.

POF Film Pelletizing Machine Application:

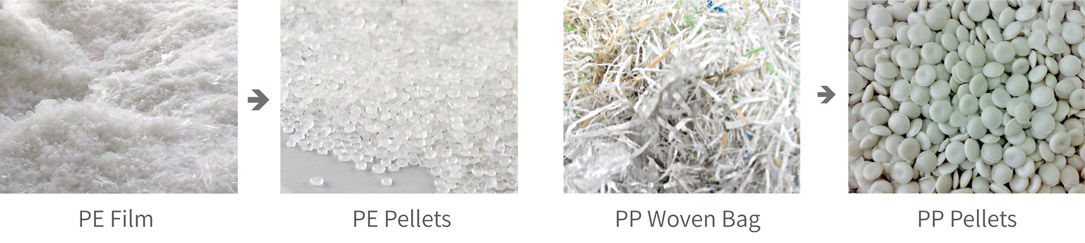

PE, PP, BOPP, HDPE, POF, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc.

POF Film Pelletizing Line-fangsheng

POF Film Pelletizing Machine Video:

Learn more about YouTube’s POF film pelletizing machine

POF Film Pelletizing Machine Technical Parameter:
FS series single-stage granulator machine
Model Extruder Screw diameter(mm) L/D ratio Power(kw) Productivity(PE)(kg/h) Productivity(PP)(kg/h)
FSJ70 70/33 φ70 33:1 110 110-150 100-130
FSJ85 85/33 φ85 33:1 150 180-250 150-200
FSJ100 100/33 φ100 33:1 210 280-350 250-300
FSJ130 130/33 φ130 33:1 300 480-550 400-480
FSJ160 160/33 φ160 33:1 370 650-750 550-650
FSJ180 180/33 φ180 33:1 460 800-1000 750-850
FS series double-stage granulator machine
Model FSJ100/120 FSJ130/130 FSJ160/160 FSJ180/200
First extruder parameter
Screw diameter(mm) φ100 φ130 φ160 φ180
L/D ratio 33 33 30 30
Extruder motor(kw) 90 132 185 250
Heating power(kw) 45 55 70 70
Screw speed(RPM) 0-120 0-120 0-120 0-120
Second extruder parameter
Screw diameter(mm) φ120 φ130 φ160 φ200
L/D ratio 10-15 10-15 10-15 10-15
Extruder motor(kw) 30 45 55 75
Heating power(kw) 30 35 45 60
Screw speed(RPM) 0-120 0-120 0-120 0-120
Productivity(kg/h) 250-350 400-550 500-700 800-1000
POF Film Pelletizing Machine Detail:
POF Film Pelletizing Line-fangsheng
Detail 1
POF Film Pelletizing Line-fangsheng
Detail 2
POF Film Pelletizing Line-fangsheng
Detail 3
