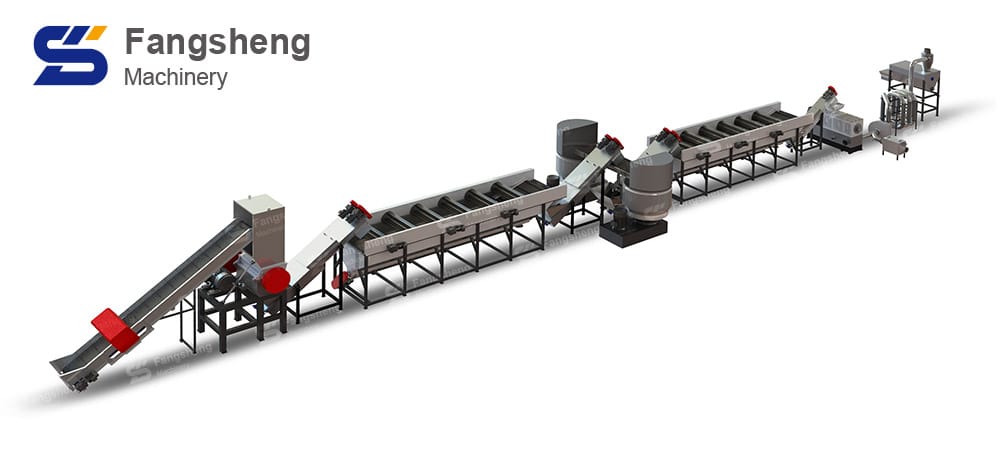

Waste Film Recycling Washing Machine

Waste Film Recycling Washing Equipment Description:

Waste film recycling washing machine is an ideal recycling system for PP/PE material, Fangsheng Machinery  have been a professional manufacturer of plastic recycling machines in China for many years. PE,PP Film Washing Line is also called PE, PP film crushing, washing,dewatering and drying line. Waste film recycling washing line with capacity from 300kg/h to 2000kg/h. The complete line includes crushing, floating washing, friction washing, dewatering and drying.

Waste Film Recycling Washing Machine-fangsheng

Waste film recycling washing line Mainly Includes Belt Conveyor, Metal Detector, Single Double Shaft Shredder, Film Crusher With Water, Floating Tank, Hot Washer,High Speed Friction Washer, Special Film Squeezer Or Film Densifier Machine, Centrifugal Dewatering Machine, Drying System, Storage Silo, Etc.. Mainly Used To Recycle Waste Plastic PE PP Waste Bottles, PE PP Waste Films And PE PP Woven Bags, Jumbo Bags, Ton Bags&Bulk Bags.

Waste film recycling washing equipment is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete film washing line, clients can make dry,clean film scraps from waste material. The whole film recycling line could be “L” or “U” shape according clients’ workshop.

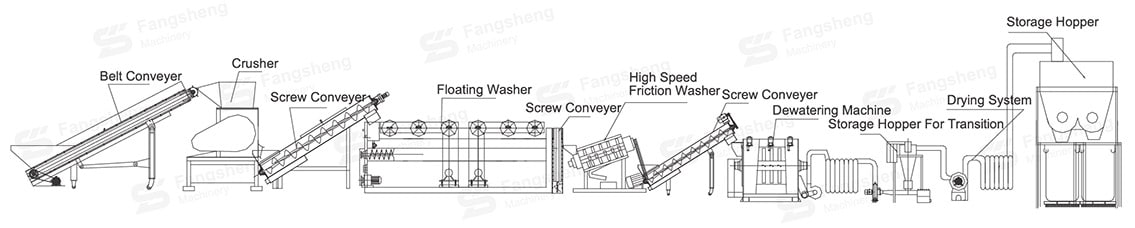

waste film recycling washing Equipment Flow Chart:

Waste Film Recycling Washing Machine-fangsheng

Waste Film Recycling Washing Equipment Application:

Waste Film Recycling Washing Machine-fangsheng

Waste Film Recycling Washing Equipment Video:

Learn more about YouTube’s Waste film recycling washing line

Waste Film Recycling Washing Equipment Detail:

Waste Film Recycling Washing Machine-fangsheng
Dewatering Machine
Waste Film Recycling Washing Machine-fangsheng
High-speed Friction Washer
Waste Film Recycling Washing Machine-fangsheng
Crusher Machine

Waste Film Recycling Washing Equipment Technical Parameter:

Name Motor power (kw) Dimension (mm) Water consumption (T/H) Stainless steel standard (mm) Electric standard
Belt conveyer 1.5 4000*600 According to customers standard
Shredder 18.5+2.2+0.75 1800*1200*1550
Wet crusher 45+0.37 0.6-1.0
Friction washer 2.2 3000*300 0.5-1.5 3-5
Hot floating washer 2.2*2+1.5+6*6 4500*1300 0.5-1.5 3-5
Screw conveyor 2.2 3000*250
High-speed friction washer 22 0.5-1.5 3-5
Screw conveyor 2.2 3000*250
Dewatering machine 45+2.2 3
Drying system 28+5.5
Storage hopper 2.2
Electricity panel
